Development and validation of EST-SSR markers in Gymnema sylvestre R.Br. | SciTechnol

Journal of Plant Physiology & Pathology ISSN: 2329-955X

All submissions of the EM system will be redirected to Online Manuscript Submission System. Authors are requested to submit articles directly to Online Manuscript Submission System of respective journal.

Research Article, J Plant Physiol Pathol Vol: 0 Issue: 0

Development and validation of EST-SSR markers in Gymnema sylvestre R.Br.

Kuldeepsingh A Kalariya*

ICAR-Directorate of Medicinal and Aromatic Plants Research, Boriavi, Anand-387310

*Corresponding Author:
Kuldeepsingh A Kalariya
ICAR-Directorate of Medicinal and Aromatic Plants Research, Boriavi, Anand-387310
Tel: +91 9427710751
E-mail: Kuldeep.Kalariya@icar.gov.in, Kuldeep_ka@yahoo.co.in

Received Date: May 17, 2019; Accepted Date: May 24, 2019; Published Date: May 31, 2019

Citation: Kalariya KA, Poojara L, Minipara D, Saran PL, Meena R, et al. (2021) Development and Validation of EST-SSR Markers in Gymnema sylvestre R.Br.. J Plant Physiol Pathol 9:5.

Copyright: © All articles published in Journal of Plant Physiology & Pathology are the property of SciTechnol, and is protected by copyright laws. Copyright © 2020, SciTechnol, All Rights Reserved.

Abstract

Known for its anti-diabetic properties, the Gymnema sylvestre belonging to the family Asclepiadaceae is native to South-Indian forests. It is also found in tropical Africa and in Australia. All arial parts of this plant contain alkaloids, flavones and saponins, but the leaves are mainly used for its medicinal properties. The diversity based on morphological, anatomical and chemo-profiles, and Randomly Amplified Polymorphic DNA (RAPD) and Inter Simple Sequence Repeats (ISSR) markers is reported however, the genetic diversity at molecular level through the most efficient, the expressed sequence tags-SSR (EST-SSR) markers is lacking in this plant. A huge transcriptome data was generated and 5276 SSRs loci were identified in this study. The frequency of SSRs in Gymnema sylvestre was 1/12.16 kB. The AAG/CTT repeats were nearly ten times higher than the CCG/CGG repeats. Total 40 pairs of primers were synthesized, and 27 primers gave polymorphic amplification in 25 genotypes of G. sylvestre collected from different parts of India. Genotypes DGS 16 and DGS 34 were the most dissimilar genotypes. This was the first study revealing genetic diversity and high polymorphisms in G. sylvestre with the help of EST-SSR markers having a higher transfer rate of 67.5%. The disorderly distribution of genotypes of same state in different clusters was reported which may be because that the G. sylvestre is an important medicinal plant people are using from ancient time and it is presumed that it would have been migrated to different places.

Keywords: EST-SSR, Gymnema sylvestre, PAGE, Transcriptome, Genetic Diversity

Keywords

EST-SSR, Gymnema sylvestre, PAGE, Transcriptome, Genetic Diversity

Introduction

Gymnema sylvestre is a climbing herb belonging to the family Asclepiadaceae and Class Dicotyledoneae is a native to South-Indian forests. It is also found in tropical Africa and in Australia [1]. It has many therapeutic applications in Ayurvedic system of medicine but, it is mainly known for having anti-diabetic properties. Popularly it is known as ‘gurmar’ or ‘sugar destroyer’. Other medicinal uses of G. sylvestre includes lowering serum cholesterol, triglycerides blood glucose level (hypoglycaemic or antihyperglycemic), weight loss, hypolipidaemic, liver diseases, constipation, stomach ailments and water retention. It is also used for maintaining normal blood pressure, tachycardia or arrhythmias, prevention of dental caries, cataract and as anticancer-cytotoxic agent.

Leaves, flowers and fruits of this plant contain alkaloids, flavones and saponins.The stigmasterol having main principle bioactive compounds viz. gymnemic acids, gymnemasides, gymnemagenin, gurmarin, gymnemosides, gymnemanol, gymnemasins, gypenoside and conduritol which act as therapeutic agent and play vital role in many therapeutic applications. Gymnemic acids from the extract are shown to stimulate insulin release from the pancreas and thereby, are thought to be responsible for its antidiabetic activity. Diversity based on morphological and anatomical traits and chemo-profiling among some natural population of gymnema genotypes is documented. Recently, transcriptomic data based putative pathway leading to biosynthesis of polyoxypregnane [2] gymnemic acid [3] identification of micro RNAs [4] and characterization of SQS gene [5] in G sylvestre is reported. Variation based on photosynthetic efficiency in genotypes of G. sylvestre is also documented [6]. Thus, gymnema genotypes are studied for morphological, anatomical, chemo and transcriptome profiling. However, diversity at molecular level is explained through RAPD and ISSR markers only in gymnema genotypes [7-10] with only few locations with small sample size.

Development of molecular markers has an important role in crop improvement programme. Exploitation of diversity at molecular level through more efficient molecular markers in such a high value medicinal plant is need of the hour.

PCR based molecular markers were used for characterizing and evaluating genetic diversity. Recently, SSR markers have been widely used in genetic diversity analysis, fingerprint construction, and molecular marker-assisted breeding because of their repeatability, high polymorphism, and codominant inheritance. EST-SSRs are not available in gymnema genotypes and hence, the main objective of this work was to develop EST-SSR markers to study the genetic diversity among twenty-five genotypes of G. sylvestre.

Materials and Methods

Plant Materials used for RNA isolation, cDNA library preparation and Quantity and Quality check (QC)

Leaf sample ofDGS 22 genotype of G. sylvestre were collected during the month of November 2017. From this sample, total plant RNA was isolated through Norgen total RNA isolation kit following manufacturer’s instructions. To calculate RNA Integrity Number (RIN) of the isolated total RNA, Agilent RNA 6000 Nano chip was used. Following standard protocol of Truseq stranded total RNA ribo zero library preparation kit (Illumina), adapter ligated libraries were prepared which was sequenced using Illumina Hiseq 2500 platform (Illumina Inc., San Diego, CA, USA) (2 × 150 PE) using standard protocol.

Transcriptome sequencing

Based on the Qubit concentration and mean peak size, the library was loaded into Illumina HiSeq 2500 platform for cluster generation. Sequencing through 2x150 Paired-End sequencing facilitated the template fragments to be sequenced in both the forward and reverse directions. The library molecules bind to complementary adapter oligos on paired-end flow cell. The adapters were designed to facilitate selective cleavage of the forward strands after re-synthesis of the reverse strand during sequencing process and the copied reverse strand was then used to sequence from the opposite end of the fragment.

De novo assembly and unigene prediction from transcripts

Trimmomatic-0.36 [11] was used to filter raw data and process at Min Phred Score (QV) 20. Trinity software [12] at default parameter. For the preparation of de novo assembly containing high quality reads, Trinity software [12] at default parameters was used. Contigs were prepared by assembling reads and minimally overlapping contigs were clustered into connected components. Unigene prediction from transcripts was done through CD-HIT package using CD-HIT-EST executable to remove the shorter redundant transcripts.

CDS prediction, SSR search and primer designing

Trans decoder [13] at default parameters was used to predict CDSs from unigenes. Minimum of 100 amino acids for the encoded protein length was set along with homology search from swiss-prot and pfam databases. SSR were identified from CDS sequences with the MISA perl script [14] Criteria for SSR repeat length for di-nucleotides was kept at least six while for other tri, tetra, penta and hexa nucleotides repeat criteria was five and more than it. Flanking regions of SSRs, 75 base pair upstream as well as downstream were used for primer designing. Primer pairs were designed using Primer 3 [15]. The major parameters for primer pair design were primer length of 18–22 bases (optimal 20 bases), PCR product size of 150-200 bp, GC content of 40–80% (optimal 50%), and annealing temperatures of 55–60°C (optimal 55°C). Based on these parameters, 40 pairs of primers were designed and synthesized for identification of polymorphism between different G. sylvestre genotypes.

Marker validation in various genotypes of Gymnema sylvestre

Total 25 genotypes of G. Sylvestre originally collected from different parts of India in year 2009 used for genomic diversity analysis in this study are listed in Table 1. These plants were maintained with standard package of practices of cultivation at the experimental field of ICAR-Directorate of medicinal plant and Aromatic plant research, Boriavi, Anand, Gujarat, India. A total of 40 EST-SSR markers were validated using Genomic DNAs of these 25G. sylvestre genotypes. Cetyl trimethyl ammonium bromide (CTAB) method was used to extract DNA from leaves of these genotypes. For PCR amplification, 10-μL reaction mixtures containing 20 ng of template DNA, 2× Dream Taq Green master mix (Thermo scientific) and 0.25 μM of each primer was used. Thermal cycling was carried out on Bio-Rad make Thermal Cycler. The PCR steps used were a pre-denaturing (95°C for 5 min) followed by denaturing (95°C for 30s), annealing (55-60°C for 45s), extension (72°C for 45s) for 35 cycles, and a final extension at 72°C for 10 min. Amplified PCR products were initially visualized to check respective product size on 1.2% agarose gel. Only agarose confirmed products was separated on 8% denaturing polyacrylamide gel using a vertical electrophoresis device.Identification of EST-SSR bands was performed using the silver staining method. Different primer pairs resulted in different number of bands and hence, only the first two bands close to the product size were considered as co-dominant markers. Based on the locus observed on the gels, well-defined bands were scored as 1 (present) or 0 (absent) in a binary matrix prepared on excel (Microsoft office 2007) work sheet. These data set was used to prepare dendrogram following Wards dissimilarity method using default parameters in Past (4.0). This method utilizes the distance between central points in each cluster and results in nicely balanced clusters and hence, preferred for cluster analysis in this study.

Summary Number
Total number of sequences examined 71676
Total size of examined sequences (bp) 64186092
Total number of identified SSRs 5276
Number of SSR containing sequences 4448
Number of sequences containing more than 1 SSR 692
Number of SSRs present in compound formation 417

Table 1: Summary of EST-SSRs present in the Gymnemasylvestre transcriptome.

Results and Discussions

Development process of Gymnema EST-SSR marker

Total 9.14 Gb raw data leading to 9,143,594,400 raw reads are deposited at NCBI under Project SUB2977090 as SAMN07528738. After filtration of data at QV 20, 8.48 Gb high quality data accounting 8,484,325,024 quality readswere generated which were further used to generate unigenes. A total of 112,583 unigenes were obtained with an N50 length of 2532 bp. Prediction of CDSs using Trans decoder at default parameters with the encoded protein length set to a minimum of 100 amino acids and homology search with swiss-prot and pfam databases resulted in 71,676 CDSs with an N50 length of 896 bp. From these CDSs, the tandem repeats of nucleotide motifs of the sizes 2-6 bp were identified using the MISA perl script which resulted in identification of a total of 5276 SSRs loci.

The occurrence rate and distribution of Gymnema SSR loci

There were 4448 CDSs containing 1 SSR locus and692 CDSs had more than 1 SSR locus. Total number of SSRs with 75bp flanking were 2685. The summary of EST-SSRs along with 75 bp up and down stream sequences are presented in Table 2. Using these information, total 40 pairs of primers were designed with the help of PRIMER 3 software.

Repeat type No. of EST-SSRs Proportion in
all SSRs (%)
Repeat motif Total number Proportion (%)
Di-nucleotide 1534 29.07 AC/GT 178 11.60
AG/CT 696 45.37
AT/AT 660 43.02
Tri-nucleotide 3651 69.20 AAC/GTT 188 5.15
AAG/CTT 978 26.79
AAT/ATT 225 6.16
ACC/GGT 420 11.50
ACG/CGT 92 2.52
ACT/AGT 121 3.31
AGC/CTG 487 13.34
AGG/CCT 387 10.60
ATC/ATG 654 17.91
CCG/CGG 99 2.71
Tetra-nucleotide 52 0.99 AAAC/GTTT 3 5.77
AAAG/CTTT 2 3.85
AAAT/ATTT 25 48.08
AAGG/CCTT 2 3.85
ACAG/CTGT 1 1.92
ACAT/ATGT 13 25
ACTG/AGTC 1 1.92
AGAT/ATCT 1 1.92
ATCC/ATGG 1 1.92
ATGC/ATGC 3 5.77
Penta-nucleotide 11 0.21 AAAAC/GTTTT 2 18.18
AAAAG/CTTTT 1 9.09
AAATC/ATTTG 3 27.27
AAGAG/CTCTT 4 36.36
AGAGG/CCTCT 1 9.09
Hexa-nucleotide 28 0.53 AAAGGG/CCCTTT 1 3.6
AACGGG/CCCGTT 3 10.7
AAGGAG/CCTTCT 3 10.7
AATCCC/ATTGGG 1 3.6
AATTCC/AATTGG 3 10.7
ACAGGC/CCTGTG 1 3.6
ACCGCC/CGGTGG 4 14.3
ACCTCC/AGGTGG 3 10.7
ACGGAG/CCGTCT 1 3.6
AGATGG/ATCTCC 4 14.3
AGCAGG/CCTGCT 2 7.1
AGCCTC/AGGCTG 1 3.6
ATCGCC/ATGGCG 1 3.6

Table 2: Characteristics of di, tri, tetra, penta and hexa nucleotides repeat motifs in the Gymnemasylvestre transcriptome.

The proportion and types of repeat motifs

The statistical analysis on repeat motifs of all SSR loci showed that, in the G. sylvestre EST-SSRs, the type of repeat nucleotide forming SSR was 2 to 6, but the occurrence rate of different SSR types was different. Total 41 different types of repeat sequence motifs were detected in SSRs loci, including three types of Di-nucleotide repeat motifs (total 1534), ten types of Tri-nucleotide repeat motifs (total 3651), ten types of Tetra-nucleotide repeat motifs (total 52), five types of Penta-nucleotide repeat motifs (total 11) and thirteen types of Hexa-nucleotide repeat motifs (total 28). As depicted (Figures 1-3) the most frequent repeat motifs were Tri-nucleotiderepeats (69.20%) followed by di-nucleotide (29.07%), tetra-nucleotide (0.99%), hexa-nucleotide repeats (0.53%) and penta-nucleotide repeats (0.21%). The results above indicated that the major repeat sequence type of G. Sylvestre SSR loci was tri-nucleotide repeats. The tri-nucleotide repeat motif AAG/CTT was the most abundant (26.79%) among the tri-nucleotide repeats which was followed by ATC/ATG (17.91%) and ACC/GTT (11.50%).

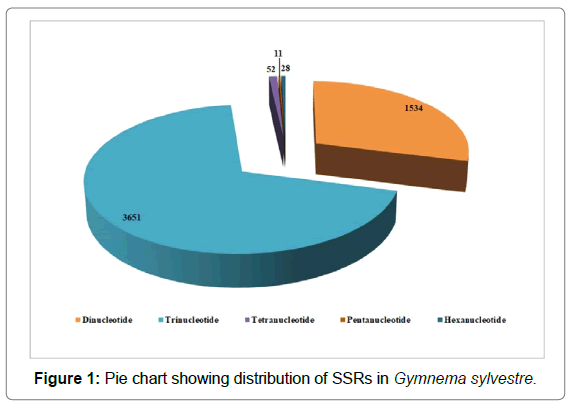

Figure 1: Pie chart showing distribution of SSRs in Gymnema sylvestre.

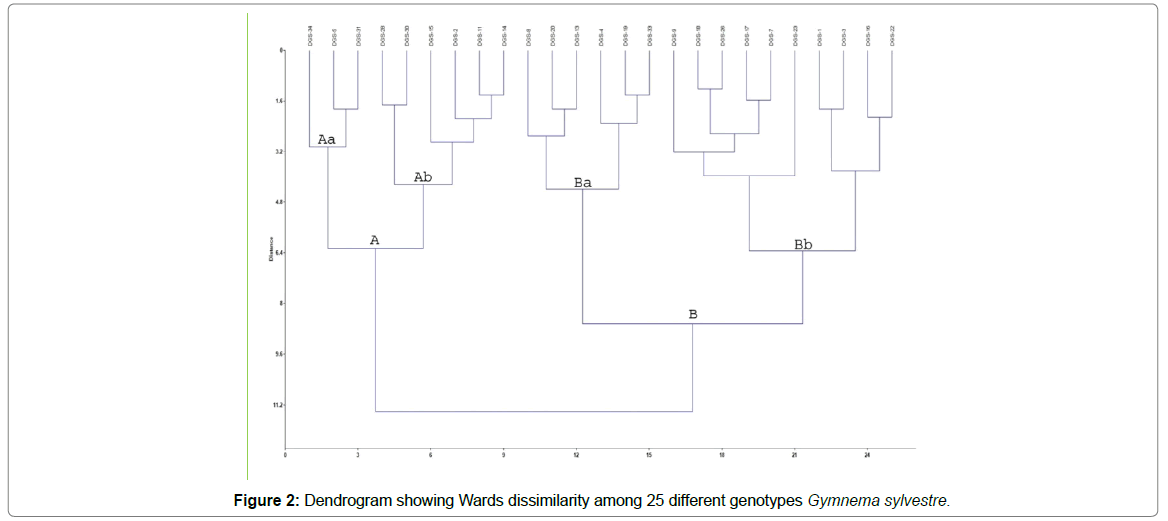

Figure 2: Dendrogram showing Wards dissimilarity among 25 different genotypes Gymnema sylvestre.

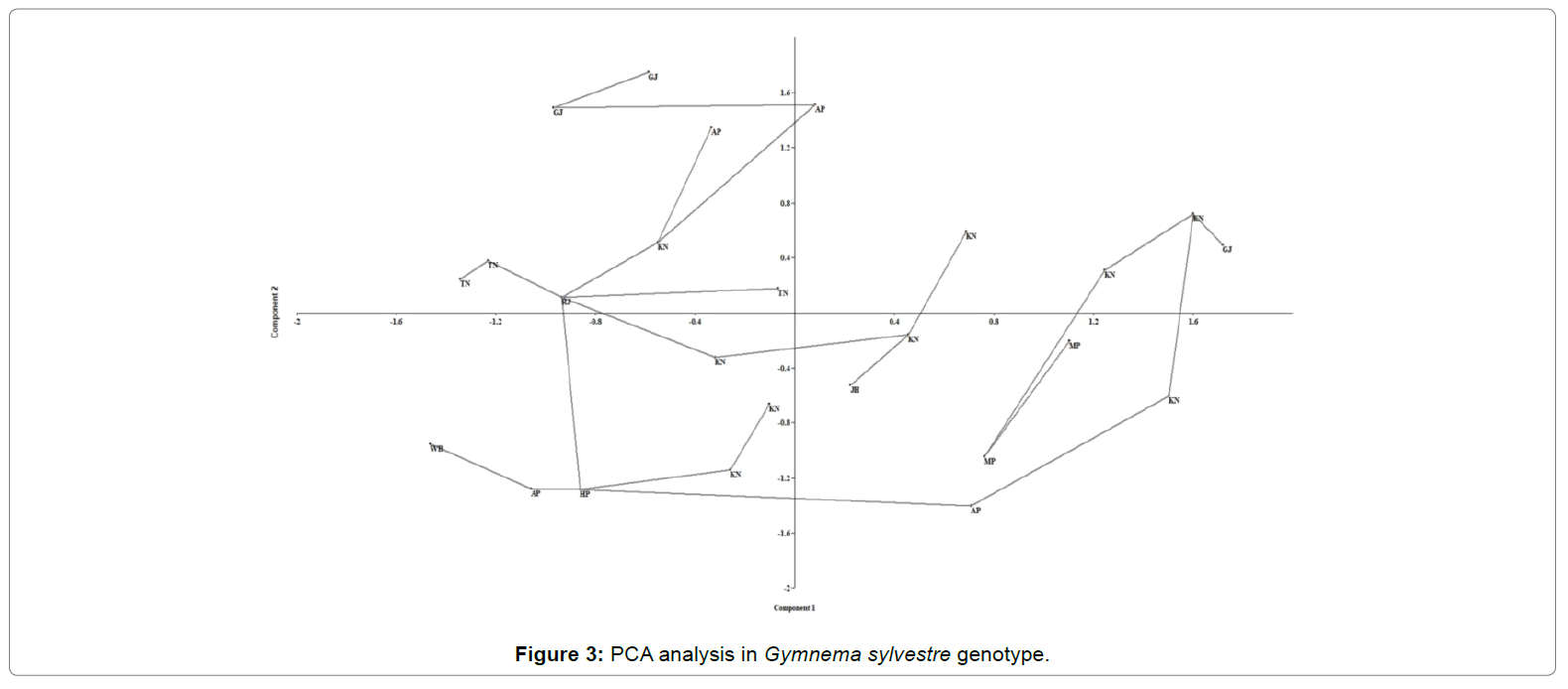

Figure 3: PCA analysis in Gymnema sylvestre genotype.

The Times of SSR repeat motif repetition

The number of times of SSR motifs repetition of G. sylvestre splicing sequences ranged from from 5 to 49 (Table 3, those >15 times are excluded). Total 5230 SSRs accounting more than 99% of the repetitions were ranged between 5 to 15 repetitions and only and 46 motifs had repetition >15, accounting for 0.88% only. Irrespectively of the type of SSRs, the number of repetitions was maximum (5 times) accounting total 2119.

Sr.no Genotype Geographical location
1 DGS-1 Waghai,Dang, Gujarat
2 DGS-2 Waghai,Dang, Gujarat
3 DGS-3 Waghai, Dang, Gujarat
4 DGS-4 Kalyani, West Bengal
5 DGS-5 Agumbe, Shimoga, Karnataka
6 DGS-7 Manglore Road, Chikmanglore , Karnataka
7 DGS-8 Dharmasthala Road, Udipi, Karnataka
8 DGS-9 Karkal,Udipi, Karnataka
9 DGS-11 Kalsa Road, Shimoga, Karnataka
10 DGS-13 N.R. Pura Road, Shimoga, Karnataka
11 DGS-14 Karnataka
12 DGS-15 Tumkur Road, Karnataka
13 DGS-16 Veerappaaiyanar,Teni, Tamil Nadu
14 DGS-17 Anakaraipatti, Madurai, Tamil Nadu
15 DGS-18 Tanipurai, Virudhnagar, Tamil Nadu
16 DGS-19 Central Region of Eastern Ghats, Visakhapatnam, A.P
17 DGS-20 Central Region of Eastern Ghats, Visakhapatnam, A.P
18 DGS-22 Central Region of Eastern Ghats, Visakhapatnam, A.P
19 DGS-23 Central Region of Eastern Ghats, Visakhapatnam, A.P
20 DGS-26 BankiSisarvula, Udaipur, Rajasthan
21 DGS-28 Khanpura Tola, Raisen, Madhya Pradesh
22 DGS-30 Agera Kheda, Dewas, Madhya Pradesh
23 DGS-31 Badra Dam, Shimoga, Karnataka
24 DGS-33 Behal village, Solan, Himachal Pradesh
25 DGS-34 Eastern Ghat Forest, Jamshedpur, Jharkhand

Table 3: Contains details from where 25 different Gymnema sylvestre genotypes were collected across India.

Processing Results using Primer 3.0 Software.

PRIMER3.0 software was used to design primers for 40 SSRs sequences. As per the data the tri-nucleotide repeats were the maximum in gymnema and hence, out of total 40 primers, we had 30 primers representing tri-repeats SSRs, 4 primers representing Di-repeats SSRs, 3 primers representing hexa-repeats SSRs, 2 primers representing tetra-repeats SSRs and 1 primer representing penta-repeats SSRs (Table 4). These primers were qualified with no possibilities of primer-dimer complex and self-complementary.

Sr.No CDS ID SSR CDS_SIZE Start End Sequences with flanking region Forward Reverse Product size
1 CDS_12917 (GTCTCC)6 1302 81 116 attgcgaagccaccacatagctcttgctccgtcgccagaccactacaaccatgattcttggtggtttccttttctGTCTCCGTCTCCGTCTCCGTCTCCGTCTCCGTCTCCtgtggctgcagcctttttacagtcaacaaattacacagacccgtctacgtcatctccaccttccaaattcccggt agccaccacatagctcttgc tggaaggtggagatgacgta 169
2 CDS_53451 (GAAAGG)5 357 106 135 gcgaagagaagagcttgttccaagatcaacaactcagcacagaacagaggcagtggcgaaaggaacaaggatagaGAAAGGGAAAGGGAAAGGGAAAGGGAAAGGcaaagggatagggaaggggagagagtaaaggcacgtgaatgtgataggggaagggaatctgacagggaacgagaa cgaagagaagagcttgttcca cccttcccctatcacattca 159
3 CDS_2152 (TCCACC)6 666 238 273 gtcagttgcatgggtcaggtgaagagaaacagcaaggtcattggattttcgacgccttacagactcacctcttctTCCACCTCCACCTCCACCTCCACCTCCACCTCCACCgccaccaacacttcaagaaacaacccatctcacggtaatctcaaatatgtgaagctcaaacgcttcttttccggc gcaaggtcattggattttcg ggaaaagaagcgtttgagctt 152
4 CDS_40417 (AAACA)5 339 109 133 tgtgtggaaacagagcttcccacgcctttatatataaatcaacatcttcctcaagaacagaaccagtgttcaaccAAACAAAACAAAACAAAACAAAACAaaaccaaacccagcaataaaaatacaaaaatgccttgccttgatatatcaactaatgtaaacttggaagaagttg agagcttcccacgcctttat aacttcttccaagtttacattagttga 163
5 CDS_45606 (TACA)5 384 243 262 ctcggagtcagccctggaaacaatctggactgtgccaaccaaaggccatttgcttagatcactactttacatatgTACATACATACATACATACAggtctcctaataatatccctgcaaataaatatatattgctgcggcttgtgttttatggcagcaataaacaaagag agtcagccctggaaacaatc tgctgccataaaacacaagc 153
6 CDS_63713 (ATTT)5 1560 1192 1211 acttttctgggtaagcctggcatcatcatagttgacgctatttttaagtatcgctttcaggttatgagtcatcaaATTTATTTATTTATTTATTTtctttttggtctttctgggaaagaaaccttgaccgctctttcagatgatagtttgaagctcttcacccgtcttta ggtaagcctggcatcatcata cgggtgaagagcttcaaacta 155
7 CDS_43444 (AGA)11 2046 1832 1864 aattagaagcccgacaacattatgagaaaatggaaaaagaactatctttctctgaatcggggaacttgaatcaacCAGCAGCAGCAGCAGCAGtaggaagcaatgaatgcagctcagagtcggtggaggatgagaatgagatggaagaggaagccgaatgtagagggc gcccgacaacattatgagaaa attcggcttcctcttccatc 151
8 CDS_2712 (ATC)10 819 137 166 tcttgttcttgatcatttcccagcaatccatggccattatttcagctcgaagtctcgggaatccatccacagtggATCATCATCATCATCATCATCATCATCATCgtcatcattatgcccaacttgcattctccttttacatagtagatgtgcttgcagaggagaagcatcaatatcctt atcatttcccagcaatccat gatgcttctcctctgcaagc 160
9 CDS_17686 (AAG)10 1716 1039 1068 gagattcctgaacttatccccattgataatggtgagagtggagttgcagttgtgacagaagattctcagctgaaaAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGgcaaataaagacagcataaataatgataagaaggcaactgggaaaagtggggttgctggcaataatctcgaggaa tcctgaacttatccccattga cgagattattgccagcaacc 170
10 CDS_57493 (ATG)9 1923 1181 1207 agcatgaagagatttccaataacagctatgaagaagaatataatggatatggctcagaggataatgagggtaggtATGATGATGATGATGATGATGATGATGctgctgctgctgatggtgatgcagatgtagaagaacagatagaagatcttggggttgtggataatgatgattcaa gcatgaagagatttccaataaca tcattatccacaaccccaaga 168CDS_45501
11 CDS_45501 (TCC)8 543 144 167 gaaccaaagttaccatcttggtctgaataatagcagaagcagttgttaccaaatttctttggtaccggtggctctTCCTCCTCCTCCTCCTCCTCCTCCtcttcggcaacagccacaacaacaacaggcggcggtgggcggagaactaattgttcgacccggagagcaatttga ccaaagttaccatcttggtctg tctccgggtcgaacaattag 162
12 CDS_49932 (TTC)8 1089 186 209 cactgcctcccaatcttcttcttctcccaaaagactcacatcaatccgtcccactgttgtttcagcaaaacttaaTTCTTCTTCTTCTTCTTCTTCTTCcctccctagtctcatcagagaccagcctgtttttgctgcccctgctcccgtcatcacccccattctgagagaaga cactgcctcccaatcttctt ctctcagaatgggggtgatg 170
13 CDS_67863 (GCG)8 450 191 214 gcggaggagtctctaagagggttaccaccaccgcaaatcgcaccacagctctggctttggctgtcgtcaccatgaGCGGCGGCGGCGGCGGCGGCGGCGgcaataacactggaaaatgcagcgccgagtgtttgtgcccaaatttcacggctacggtttcggcatcttcttctt ggttaccaccaccgcaaat aagaagatgccgaaaccgta 152
14 CDS_21921 (TCT)8 357 213 236 gtcatcattatcatcaccaccaacaactacgaggacaaaggtaaagatgaaaagcaaccgtcttaaagttgttgcTCTTCTTCTTCTTCTTCTTCTTCTtggtgatgatgatgtacaagttctgttgcttattgatgaagtccaacaaccaatactctttcctcgctttcatca accaccaacaactacgagga gcgaggaaagagtattggttg 151
15 CDS_62182 (GAA)8 903 309 332 ctttgggatgaaagggatattaacaagctttgtcacaccagctgcaccttccaaagaaaatcacaattctgaaggGAAGAAGAAGAAGAAGAAGAAGAAcaggctgtatgtgtgcaaccacagaacactttttgatccaatttgtatttccgtggcactcaggaaacctgtaat tgggatgaaagggatattaacaa tgagtgccacggaaatacaa 158
16 CDS_2169 (CGG)8 1008 591 614 ccgtagaaacaagaaaagcaaaagcggtagcagctcgaaatcttcagctagctctgatcatcaccggcagattggTAATAATAATAATAActcaaccagtacggctagtccttccagctgcaccacggatatggtcggtcatcatttcccacagccgccgtcaac ccgtagaaacaagaaaagcaaaa ggctgtgggaaatgatgac 156
17 CDS_14006 (AAT)8 1287 733 756 gactgtgttgtcgtcgagagctgctgctatggcggtaatagtcttggaacctgttcttcagcaacaagctatggaAATAATAATAATAATAATAATAATgctttacttatcagtcgctcaatgagctatccctctgagaattttctcagtttctgctacaaatgcaagaagaat tgtgttgtcgtcgagagctg tgcatttgtagcagaaactgaga 163
18 CDS_23082 (TGC)7 1155 117 137 taataataatcacgagatgaagagaatcccttcggagttggcaatggacgagctgttcaagcacacgagagccgaTGCTGCTGCTGCTGCTGCTGCtcagatcggcccgaataatgatcagaaagacgcggctaaatcgagaacaactgatcatcagacctttgggtgcag aagagaatcccttcggagttg gcacccaaaggtctgatgat 150
19 CDS_53326 (CTC)7 999 134 154 ccccgattctctctcttcccaccaactcctcttcttcttccatttctctcaagcataaattctcattctcattcaCTCCTCCTCCTCCTCCTCCTCatatcttcttctccacttcttcggcgccaccgcgacagctacaacaactaccgtcacctctgcctatatctgcct tctctcttcccaccaactcct aggcagaggtgacggtagtt 152
20 CDS_62796 (ACC)7 648 145 165 gagaaagaagaaattaaagggatgatgatgtcatctgaggctacctcatcatcccagggattggtaatcagtagtACCACCACCACCACCACCACCactgataaggaagagcatgaaaagggaaagaactatatcggtgttcgtaagaggccatggggaaaatttgctgct gaagaaattaaagggatgatgatg ccatggcctcttacgaacac 150
21 CDS_37800 (ATA)7 858 200 220 ccctggctcagcgtttccaggttctggttttcgactggagcttttcgggtgcggtaattaataatgataatgatgATAATAATAATAATAATAATAaggactcgacgaagaaccagctgttcgatgcagccaaatacacttgctatgatgcttttgcagatgacttgatag tccaggttctggttttcgac tcaagtcatctgcaaaagca 153
22 CDS_9020 (CCA)7 675 221 241 ccccaactgctctactcaccccaaccaccgccactcccaagccactgactccaattaagtcgaaactccttcctcCCACCACCACCACCACCACCAatgcagccacaggtccttcaccttgtactcgccgccgtgacttgttatctctggctgtcggaatagtcgtcgcac ctgctctactcaccccaacc tccgacagccagagataaca 152
23 CDS_16387 (CGA)7 600 225 245 tctaaacaccccaaaaggcttcggaacctcaccaccaaagaaatcgaagaaaccaaaaaagggctacaacaaattCGACGACGACGACGACGACGAcggcgaagatgaagaagaagaagagcgagaagaggacgttataccagagatcgtgacgaatagaatgatgaacag taaacaccccaaaaggcttc cgtcacgatctctggtataacg 152
24 CDS_61610 (CCT)7 384 226 246 ggggaaaacatgggtagttctggaagctacaaggcggccagcttgggggatatttcaggtataaaggagtttgggCCTCCTCCTCCTCCTCCTCCTcttactataatctgcaagcaacagcccccaccactcctctgtatttcctttcctcctctatcagagtcgctcgag ggggaaaacatgggtagttc tcgagcgactctgatagagga 170
25 CDS_62309 (CAG)7 2064 247 267 ccactgagtcctcctacgacttcagcttcatcacagactgttgctcccgtttcttctccgatgtctactcgactaCAGCAGCAGCAGCAGCAGCAGgattattttacttcggaagaggagtatcaggtgcaattagcccttgccttgagtgcgtcggattcatcaggccac cctcctacgacttcagcttca ctgatgaatccgacgcact 157
26 CDS_24775 (CTG)7 726 266 286 cccccgtactatcaagggatttctttgctgtagatcctccacaatctgaggcccaaatcaacaacaaccaactgcCTGCTGCTGCTGCTGCTGCTGcttcagcaatggatgaagaagttgaatcagtcgactctccacactccatcgaatccgaagtgttgccacccaaca ccccgtactatcaagggattt cttcggattcgatggagtgt 155
27 CDS_46528 (GCA)7 537 278 298 aacaaactcctctcactcaatgtgagtggtttcgagatttcaatccggtgttcagtcgtcatcaatcacagagtgGCAGCAGCAGCAGCAGCAGCAacaacaatggttctccagctcaacgagctttccactacatggctgtgaagttcaaaaggctgttcagagagctgg tcaatgtgagtggtttcgagat ccagctctctgaacagccttt 155
28 CDS_14113 (TAA)7 1239 342 362 tgcgacggtgccttttgactgggaagagaagcctggtaagcccaaaatgaaatcacccgccgtcataggtggttcTAATAATAATAATAATAATAAtgaaggagaaggtggaggaggatatgactttgcttttgaagtgagtgaggatttcgacagagtctctgtttctgc gtgccttttgactgggaaga ctctgtcgaaatcctcactca 151
29 CDS_13865 (TTA)7 519 364 384 gatatggaatctaaattatctaacagtaatactgactccaccgagaataatggaagagttatttgcaaggtccgtTTATTATTATTATTATTATTAtttataattttaaaaaatatttatatcatgctttcttataagctttactcttcactttattgcttgtttactgtt tgactccaccgagaataatgg caagcaataaagtgaagagtaaagc 130
30 CDS_12534 (TGA)7 1968 462 482 tgaggatattgttgacacggagacagaggaatcatgtcacaatactgacgacgataaatatgaagatagctttatTGATGATGATGATGATGATGAactggaagttttttcacattcacctgtttcgagtgatcaaggtaaaacaaagatgatagagcagaaaggcaacag tgttgacacggagacagagg tgttgcctttctgctctatca 161
31 CDS_24774 (CTG)7 1068 608 628 cccccgtactatcaagggatttctttgctgtagatcctccacaatctgaggcccaaatcaacaacaaccaactgcCTGCTGCTGCTGCTGCTGCTGcttcagcaatggatgaagaagttgaatcagtcgactctccacactccatcgaatccgaagtgttgccacccaaca ccccgtactatcaagggattt cttcggattcgatggagtgt 155
32 CDS_35537 (GAC)7 792 658 678 gagaagttgaaaagggaggcaaaggggattccattgaaacagtatgatgaagaagatgaaagtcaagatgaagatGACGACGACGACGACGACGACtttgattatagcatcctggctgatccaaatgtgaatgtatatgagccagtgcaacctcatgttaatggcactgaa gttgaaaagggaggcaaagg tgaggttgcactggctcata 150
33 CDS_8492 (TCA)7 2241 706 726 gagttgactcaattgtcgcacttactcactctccgtctcgagtttaactcgtttaatggaactctttcctctgtcTCATCATCATCATCATCATCAtctactctggcctcctcactttccgacttcaatgtctcagaaaatggcctcgccggtaggatcccagactggtta ttgtcgcacttactcactctcc accagtctgggatcctaccg 157
34 CDS_33255 (GAG)7 1317 1115 1135 aagaagacgttctgagacttcagagccagtgcatggtaatgcaaggacagattgagaggttaatggagaaaaagcGAGGAGGAGGAGGAGGAGGAGggcttttcagttggaagaagatcggaatgctgtctcttagagctgctaataacagtaagtttggggaagttgacg tcagagccagtgcatggtaa cgtcaacttccccaaactt 152
35 CDS_9535 (GAT)7 1581 1429 1449 ttggtggagagatcatgtacccaattgattaaaatacctggaaactctccaatgagtataattgctggagaaaacGATGATGATGATGATGATGATacagagagtgttaggttggatcacatgtttccaggtcaagagtttaggtcctttctggctgtagagagtctgaat tggtggagagatcatgtaccc cagccagaaaggacctaaactc 156
36 CDS_10965 (CAC)7 1971 1510 1530 agaaatccaccacccttgggcggtggtggcggcattggcagccatttatttggtcttagcggcggaagcagcagtAACAACAACAACAACatgatgagcttaggtttatctcaattgggttcttctcaaattgaccaaaaccagagtagtagtactactccagca agaaatccaccacccttgg ctactactctggttttggtcaattt 152
37 CDS_15968 (AG)12 303 139 162 ttaggacaggaaacgctggaccctccgagaaaacctcactcaaagtcagttgttttcaactcccgaggacagcacAGAGAGAGAGAGAGAGAGAGAGAGaaggggagtctctttctcagcagtgaatggtggtggtgttggtgggcagagaaagctagattacgccagtggaca taggacaggaaacgctggac ctagctttctctgcccacca 157
38 CDS_24144 (AT)12 1758 245 268 tttcattcaattatctatacgcccccttcttattccgcaataacgttacattcaaaaactctgttctacatgtacATATATATATATATATATATATATttcctgttcttgtttcagttcattacagtgtaaggcttcaagatggttcttactttgaatccagcagcaagaaag atacgcccccttcttattcc ttcttgctgctggattcaaa 156
39 CDS_52371 (CT)10 546 121 140 atatacttcttcgattgcattcgtctaccattgatctcaaggttttgctttcatttttgtaatcctagagtcaagCTCTCTCTCTCTCTCTCTCTgatcacactaatgaagaaggtggttgtggaagtaggcgtccgtgatgagaaagataaacagaaggcgatgaaagc tcgattgcattcgtctacca acgcctacttccacaaccac 124
40 CDS_4021 (AC)9 888 217 234 cttcctaaccacaaagggctgtcacttttaactcaagaaatgacctatatagacttatttttacccaaaaaaaaaACACACACACACACACACaaattattagattgttttatccttaaattggtagaaaattcaccctccaaaaaaggacaaaatgactaccagaca aaccacaaagggctgtcact ggagggtgaattttctaccaa 135

Table 4: Details of 40 polymorphic primers synthesized from 5276 identified SSR.

Repeat motif Number of repeat units
  5 6 7 8 9 10 11 12 13 14 15 >15 total
AC/GT - 65 37 25 16 7 18 3 3 3 - 1 178
AG/CT - 215 125 68 74 58 44 46 16 6 5 39 696
AT/AT - 247 92 94 76 71 54 11 11 1 3 0 660
AAC/GTT 117 42 9 11 5 3 1 - - - - 0 188
AAG/CTT 470 260 124 89 5 16 6   1 1 - 6 978
AAT/ATT 122 70 21 11 - - - - - 1 - 0 225
ACC/GGT 238 103 53 19 2 - 5 - - - - 0 420
ACG/CGT 63 14 9 4 - 2 - - - - - 0 92
ACT/AGT 73 27 19 2 - - - - - - - 0 121
AGC/CTG 352 71 38 25 1 - - - - - - 0 487
AGG/CCT 162 91 67 34 14 12 6 1 - - - 0 387
ATC/ATG 403 159 59 24 3 3 - - - 3 - 0 654
CCG/CGG 59 31 4 5 - - - - -   - 0 99
AAAC/GTTT 3   - - - - - - - - - 0 3
AAAG/CTTT 1 1 - - - - - - - - - 0 2
AAAT/ATTT 25   - - - - - - - - - 0 25
AAGG/CCTT - 2 - - - - - - - - - 0 2
ACAG/CTGT 1   - - - - - - - - - 0 1
ACAT/ATGT 10 3 - - - - - - - - - 0 13
ACTG/AGTC 1 - - - - - - - - - - 0 1
AGAT/ATCT 1 - - - - - - - - - - 0 1
ATCC/ATGG 1 - - - - - - - - - - 0 1
ATGC/ATGC 3 - - - - - - - - - - 0 3
AAAAC/GTTTT 1 1 - - - - - - - - - 0 2
AAAAG/CTTTT 1 - - - - - - - - - - 0 1
AAATC/ATTTG 3 - - - - - - - - - - 0 3
AAGAG/CTCTT 4 - - - - - - - - - - 0 4
AGAGG/CCTCT 1 - - - - - - - - - - 0 1
AAAGGG/CCCTTT 1 - - - - - - - - - - 0 1
AACGGG/CCCGTT - 3 - - - - - - - - - 0 3
AAGGAG/CCTTCT 3 - - - - - - - - - - 0 3
AATCCC/ATTGGG - 1 - - - - - - - - - 0 1
AATTCC/AATTGG 3 - - - - - - - - - - 0 3
ACAGGC/CCTGTG - 1 - - - - - - - - - 0 1
ACCGCC/CGGTGG 1 3 - - - - - - - - - 0 4
ACCTCC/AGGTGG 1 2 - - - - - - - - - 0 3
ACGGAG/CCGTCT - 1 - - - - - - - - - 0 1
AGATGG/ATCTCC - 4 - - - - - - - - - 0 4
AGCAGG/CCTGCT - 2 - - - - - - - - - 0 2
AGCCTC/AGGCTG - 1 - - - - - - - - - 0 1
ATCGCC/ATGGCG 1 - - - - - - - - - - 0 1

Table 5: Frequency of classified repeat types (considering sequence complementary) in the analysed 4448 splicing sequences.

Marker validation

From these 40 primer pairs the amplification was obtained in 27 pairs of EST-SSR primers. Based on the banding pattern there were total 25 polymorphic primers. The dendrogram following Wards dissimilarity method was prepared (Figure 2) and there were 2 separate main clusters named A and B. There were 9 genotypes in cluster A, and 16 genotypes were there in cluster B. Cluster A and B were further divided in Clusters Aa, Ab and Ba, Bb. Genotypes collected from Gujarat and Karnataka were there in both the clusters A and B. Cluster Ba and Bb contained most of the genotypes collected from different regions of Andhra Pradesh and Tamil Nadu. According to the dendrogram it can be presumed that the genotype DGS 16 (collected from Veerappaaiyanar, Teni, Tamil Nadu, India) and DGS 34 (collected from Eastern Ghats Forest, Jamshedpur, Jharkhand) were the most dissimilar genotypes. Genotypes DGS 28 and DGS 30 both were collected from Madhya Pradesh and both were falling under the same cluster Ab also. However, genotypes DGS 15 (collected from Tumkur Road, Karnataka) and DGS 8 (collected from Dharmasthala Road, Udipi, Karnataka) thoughboth collected from the same state of Karnataka plotted in different clusters but with close similarity between these two clusters. The minimum span tree of the principal component analysis (PCA) with showed that there was no specific group of one particular state (Figure 3). It is interesting to note that the genotype collected for Rajasthan state was at the central point of the span tree.

Diversity can be categorized into genetic diversity, species diversity and ecosystem diversity [16,17]. The conservation of biological diversity should emphasise on preventing the disappearance of genetically distinct populations rather than the sole prevention of the extinction of species. This will also lessen the risk of extinction, even in a longer time perspective as the ability of a population to adapt to the environmental changes depends on genetic variability or diversity of the population [18]. G. sylvestre has a very high medicinal value which makes it one of the highly marketed plants. It is therefore a very important plant species from the medicinal and economical perspective. The interactions of various processes such as long-term evolutionary history of the species which includes habitat fragmentation, population isolation and shifts in distribution along with gene flow, genetic drift, mutation, and natural selection all together decides the genetic makeup of plant populations [19]. In a genetic diversity study, a meaningful conclusion drawing estimate of heterozygosity is possible provided it has enough loci generated even in small sample size [20]. Because of their repeatability, high polymorphism, and codominant inheritance, the SSR markers have been widely used in genetic diversity analysis, fingerprint construction, and molecular marker-assisted breeding [21-24]. The traditional methods for developing SSR markers are not very efficient [25] and therefore, next-generation sequencing technologies can generate massive data, which are good resources for developing SSR markers in many species including G. sylvestre. Nevertheless, SSRs in G. Sylvestre have not been reported previously because of lack of transcriptome or genome sequences. There were 4448 CDSs containing 1 SSR locus and 692 CDSs had more than 1 SSR locus. Total number of SSRs with 75bp flanking were 2685. The summary of EST-SSRs along with 75 bp up and down stream sequences are presented in Table 2. Using these information, total 40 pairs of primers were designed with the help of Primer 3 software.

The frequency of SSRs in G. sylvestre is 1/12.16 kB, excluding the mononucleotide repeats. It was close to Arabidopsis (1/13.83) [26] but, significantly lower than wheat having 1/5.46 [27] and P. Violascens having 1/4.55 kB [28]. The SSR frequency can be affected by various factors, including software, search criteria as well as species properties. Tectonic activities and climate fluctuations during species evolutionary history contribute to the production and accumulation of genetic variations. The high frequency of SSRs detected in G. sylvestre may be due in part to the long and complex evolutionary process of G. sylvestre.

In this study, we identified 4448 EST-SSR loci, designed 40 primers and report 27primers with polymorphic locis. Thus, we have successfully made diversity analysis of 25 genotypes of G. Sylvestre collected from different location in India. Clear bands were generated and higher transfer rate of about 67.5% was detected compared with Elymus sibiricus (22.40%) [29] Chrysanthemum nankingense (20%), Juglans mandshurica (30.8%) [30] and Neolitsea sericea (16.3%) [31] and comparatively lower than the transfer rate observed in Phyllostachys violascens (100%) [28].

This study also reports different types of EST-SSR repeat motifs in G. sylvestre however, with disorderly distribution. Tri repeats were the most predominant and they were accounting for 69.20 % of total SSR repeats. In addition, the proportion of Di, tetra, Penta, Hexa repeat motifs were significantly lower.In the EST-SSR loci, each tri-nucleotide repeat motif codes a specific amino acid, which plays an important role in various cellular, biological, and metabolic processes in plants. The percentage of tri-nucleotide motifs AAG/CTT, which codes for leucine and lysine was the highest (26.79%) followed by isoleucine and methionine coding repeats ATC/ATG (17.91%). Among tri nucleotides AAG/CTT was the most predominant accounting for 26.79% of the total SSR repeat motifs. The value is comparatively higher than the monocot plants like Taro [32], Bamboo [28], Rice and Maize [26] in which the tri repeat SSR motif values were about 5.91%. Previous studies showed that the tri-repeat type of CCG/CGG was a rare motif in dicotyledonous plants but the most abundant repeat type among the tri-repeats in monocots [33,32] In our study in G. sylvestre which is a dicot plant, CCG/CGG repeats was only 2.71% whereas AAG/CTT repeats were maximum of all tri SSR repeat motifs. This is in support of the available data base which shows high CCG/CGG repeats in monocot plants and AAG/CTT repeats are common in Dicot plants [34].

To device management strategies for conservation of plant, the complete knowledge of genetic variation within and among populations of plant species is essential. But the genetic diversity of G. sylvestre has been relatively unclear. ISSR and RAPD markers were used to study the genetic diversity and population genetic structure in G. sylvestre. Several studies have been carried out on genetic diversity in India. The study on 18 samples of G. Sylvestre from Kerala using 15 RAPD primers has revealed high polymorphism [7].Similarly, polymorphism on 11 progenies of G. sylvestre from Uttar Pradesh using 40 RAPD primers have been reported [9]. In Maharashtra genetic diversity was carried out on 22 accessions of G. sylvestre using ISSR and RAPD markers that resulted high level of gene differentiation [8]. Highpolymorphism is reported on 5plants samples from Haryana using ISSR marker [10]. It is interesting to note that all the above authors have obtained high genetic diversity within the populations of G. Sylvestre. However, available genetic diversity reports explored few locations, small samples size, and RAPD fingerprinting, no elaborate data on population diversity is yet available. Recently, transcriptomic data based putative pathway leading to biosynthesis of polyoxypregnane is proposed [2]. However, as far as the diversity at genetic level is concerned, no data was available revealing polymorphism through SSR markers either genomic or EST-SSRs up till now. This was the first study revealing genetic diversity and high polymorphisms in G. sylvestre with the help of EST-SSR markers.

Furthermore, a dendrogram encompassing all 25 genotypes of G.Sylvestre collected from different locations across India used in this study was also built based on EST-SSR markers. The results showed all the varieties of G. sylvestre were clustered in two main groups. Genotypes DGS 16 and DGS 34 were the most dissimilar genotypes in which DGS 16 was collected from Tamilnadu and DGS 34 was collected from Jharkhand. DGS 15 and DGS 8 both were collected from the same state (Karnataka) but were falling under different clusters. DGS 1, 2, 3 were collected from Gujarat in which DGS 1 and 3 both are having similarity and falling under the same cluster but DGS 2 is falling under different cluster. Whereas Genotypes collected from Andhra Pradesh (DGS 19, DGS 20, DGS 22 and DGS 23) and Tamilnadu (DGS 16, DGS 17, and DGS 18) were covered under cluster B.Thus, disorderly distribution of genotypes of same state in different clusters was revealed from this study. Central location of the genotype collected from Rajasthan in the minimum span tree of the PCA may be because that the G. sylvestre may not be monophyletic. At the same time, it is pertinent to mention here that G. sylvestre is an important medicinal plant people have been using from ancient time and therefore, it is also presumed that it would have been migrated to different places which may be the reason behind messy distribution of genotypes in this study.

Conclusion

The information on genetic variation within populations of plants based on EST-SSR was lacking in G. sylvestre. This was the first attempts at G. sylvestre genetic and genotypic diversity analysis using EST-SSR markers developed from transcriptome sequencing. Through transcriptome analysis, we have generated huge data (9.14 Gb) and predicted 71,676 CDSs with an N50 length of 896 bp and identified total of 5276 SSRs loci. The AAG/CTT repeats were nearly ten times higher than the CCG/CGG repeats. We have designed 40 pairs of primers and reported 27 primers to be polymorphic in 25 genotypes of G. sylvestre collected from different parts of India. This was the first study revealing genetic diversity and high polymorphisms in G. sylvestre with the help of EST-SSR markers having a higher transfer rate of 67.5%. A dendrogram showed that 25 genotypes of G. sylvestre were clustered in two main groups. Genotypes DGS 16 and DGS 34 were the most dissimilar genotypes.

Availability of Data and Materials

The data generated or analysed during this study are included in this published article, its supplementary information files, and publicly available repositories. The transcriptome raw data are deposited at NCBI under Project SUB2977090 with SRR 5965323.

Competing Financial Interests

The authors declare no competing financial interests.

Acknowledgments

We acknowledge the funding through FAP Scheme from Gujarat State Biotechnology Mission (GSBTM 4867, 2016-17,23.09.2016) Govt. of Gujarat, and the ICAR-DMAPR, Anand and the ICAR, New Delhi for providing the basic facilities for this research work, the germplasm explorer and all the curators of the genotypes used in this study.
