Research Article, J Regen Med Vol: 11 Issue: 5

Osteogenic Effect of Zingerone on Human Umbilical Cord Stem Cells and Investigation of miR-590 and Smad7 Expressions

Amir Hossein Zafari, Zeinab Piravar*, Mina Ramezani

Department of Biology, Faculty of Sciences, Central Tehran Branch, Islamic Azad University, Tehran, Iran

*Corresponding Author: Zeinab Piravar
Department of Biology, Faculty of Sciences, Central Tehran Branch, Islamic Azad University, Ashrafi Isfahani Highway, Imam Hassan Blvd,Tehran 1955847881, Iran
E-mail: [email protected]

Received: 21-Aug-2022, Manuscript No. JRGM-22-72523;
Editor assigned: 24-Aug-2022, PreQC No. JRGM-22-72523(PQ);
Reviewed: 07-Sep-2022, QC No. JRGM-22-72523;
Revised: 20-Sep-2022, Manuscript No. JRGM-22-72523(R);
Published: 27-Sep-2022, DOI: 10.4172/2325-9620.1000227

Citation: Zafari AH, Piravar Z, Ramezani M (2022) Osteogenic Effect of Zingerone on Human Umbilical Cord Stem Cells and Investigation of miR-590 and Smad7 Expressions. J Regen Med 11:5.


Background: The differentiation of osteoblasts is an essential process that causes bone stability and homeostasis. Zingerone (ZG) 4-(4-hydroxy-3-methoxyphenyl)-2-butanone isolated from the ginger plant is involved in many biological processes and can be used to treat diseases. This study aimed to investigate the effect of Zingerone on human umbilical cord stem cells (hUC-MSCs) and their differentiation into osteoblasts.

Methods: The effect of Zingerone toxicity on hUC-MSCs cells was investigated by the MTT method. The expression of miR-590 and Smad7 and differentiation markers such as Osterix (OSX) and runt-related transcription factor 2 (RUNX2) were investigated by quantitative real-time polymerase chain reaction (qRT-PCR). The expression level of this enzyme was checked by an alkaline phosphatase (ALP) reaction.

Results: Zingerone has no cytotoxic effects on hUC-MSCs cells and positively affects the differentiation process of osteoblasts by influencing the expression of specific markers such as ALP, RUNX2, and OSX. The expression of miR-590 is increased, while that of Smad7 is decreased under the influence of different Zingerone concentrations. Therefore, ZG enhances the expression of osteoblast-specific markers (RUNX2, OSX, and ALP) by increasing the amount of miR-590. miR-590 suppresses Smad7 and helps the differentiation of osteoblasts.

Conclusion: ZG plays a role in hUC-MSCs by affecting the miR- 590/Smad7 pathway on the differentiation of these cells into osteoblasts and the expression of their specific markers, including RUNX2, OSX, and ALP. The osteogenic ZG has the potential to treat bone diseases.

Keywords: hUC-MSCs, Zingeron, Osteoblast differentiation, miR-590, Smad7


Mesenchymal Stem Cells (MSCs) are present in the bone marrow, umbilical cord, adipose tissue, and placenta in adults, and they maintain the reserves of these tissues [1]. These cells can differentiate into different cells such as osteoblasts, cartilage, fat, nerve, and muscle cells. Umbilical cord Mesenchymal stem cells (UC-MSCs) have great practical value in medicine due to being separated from a broad and accessible source and the lack of ethical issues [2].

As a member of the body’s skeletal and regenerative system, bones create the body’s shape and support the body’s mechanical, motor, and protective activities. In addition, they balance mineral ions and regulate metabolism. Maintaining the homeostasis of bones guarantees their various functions [3]. The differentiation of mesenchymal stem cells into osteoblasts is the basis of maintaining bone homeostasis. Thus, discovering the differentiation pathways and the factors involved is of great significance [4].

Zingerone (ZG) 4-(4-hydroxy-3-methoxyphenyl)-2-butanone is obtained as a non-volatile compound due to drying ginger [5]. There are several reports on the benefits of ZG in human health.

It possesses anti-inflammatory, antioxidant and anti-genetic damage effects and also helps neutralize the anti-apoptotic effects induced by radiation [6]. However, studies on the impact of ZG on osteoblast differentiation are minimal. For example, in a study, the positive effect of ZG on the differentiation of mice mesenchymal stem cells into osteoblasts showing the unique role of this combination in restorative medicine [7]. MicroRNAs are single-stranded non-coding sequences of 18 to 22 nucleotides that bind competitively to the 3.UTR region of the target mRNA [8]. Various studies show the role of different miRNAs in bone tissue maintenance and differentiation. For example, miR-96 is involved in the differentiation and formation of mice bone tissue through the Wnt signaling pathway [9]. Moreover, miR-214 overexpression inhibits the differentiation of mesenchymal stem cells into osteoblasts by suppressing beta-catenin and weakening the Wnt/β-catenin pathway [10].

Recently, studies have shown that Smad7 inhibits TGF-β by affecting its receptor [11]. The role of Smad7 has also been identified in tumorigenesis and metastasis of colorectal cancer, breast cancer, melanoma, and endometrial carcinoma [12]. In addition, it can mediate TGF-β inflammatory responses and inflammatory autoimmunity. On the other hand, Smad7 participates in the differentiation of osteoblasts [13]. Despite the role of this factor in osteogenic differentiation; however, its regulatory mechanisms have not yet been entirely determined yet. This study aimed to determine the osteogenic effect of ZG and the expression of miR-590 and Smad7 in human umbilical cord stem cells [14].

Materials and Methods

Cell culture and treatment with ZG

Human umbilical cord stem cells were purchased from Royan Research Institute’s cell bank and incubated in a DMEM/F12 culture medium supplemented with 10% FBS at 37°C and an atmosphere of 5% CO2 and 95% air. Osteogenic cell induction was done with different concentrations of Zingerone. HUC-MSCs cells were incubated with 50, 100, and 200 μM Zingerone concentrations for 72 hours. The group without Zingerone was considered the control.

3-(4,5-dimethyl-2-thiazolyl)-2, 5-diphenyl-2-H-tetrazolium bromide (MTT) assay

MTT assay was performed to investigate the cytotoxicity of ZG. About 5x103 cells were cultured in 96-well plates and treated with the desired concentrations of Zingerone for 24, 48, and 72 hours to perform this test. Then the supernatant was removed, and 200 μl of 0.05% MTT solution (Sigma-Aldrich) was added to each well. After incubation for 1 hour at room temperature, the supernatant was removed, and Dimethyl Sulfoxide (DMSO, Sigma-Aldrich) was added to each well to dissolve the formazan crystals. Finally, the Optical Density (OD) at 570 nm was measured by a spectrophotometer (Thermo Fisher).

Quantitative real-time polymerase chain reaction (qRTPCR)

Total RNA of hUC-MSCs treated with different concentrations of ZG for 72 hours was isolated using TRIzol reagent (Sigma-Aldrich). cDNA synthesis was done using a cDNA reverse transcription kit made by Pars Toos Company. The qRT-PCR reaction was performed using SYBR Green PCR Master Mix made in Amplicon Co. The relative expression of genes was calculated using the formula2−ΔΔ∁t. β-actin gene was used as the internal control. The primers of this study are listed in Table 1.

Genes F and R Primers

Table 1. Primers used in the differentiation of hUC-MSCs into Zingerone-treated osteoblasts.

Alkaline phosphatase level test (ALP test)

After 14 days of hUC-MSCs treatment with different Zingerone concentrations, the cells were washed with PBS, lysed by NP4O lysing buffer, and centrifuged at 12000 rpm. The supernatant was separated, and alkaline phosphatase activity was tested at 450 nm using an alkaline phosphatase kit (Pars Azmoun, Iran) with the colorimetric method and spectrophotometer.

Statistical analysis

All experiments were repeated three times. The data obtained in SPSS software version 16 were analyzed as mean±SD using a one-way ANOVA test (P<0.0).


Zingerone has no cytotoxic effect on hUC-MSCs cells.

MTT assay was performed to investigate the effect of ZG toxicity on cells. The results of the Zingerone toxicity test on hUC-MSC cells showed that 50, 100, and 200 μM concentrations did not have cytotoxic effects on these cells. Still, the growth and proliferation of cells increased at higher concentrations than in the control specimen (Figure 1A). The morphology of the cells was spindle-shaped after treatment with Zingerone for 72 hours, and they were in favorable conditions for cell growth (Figure 1B).

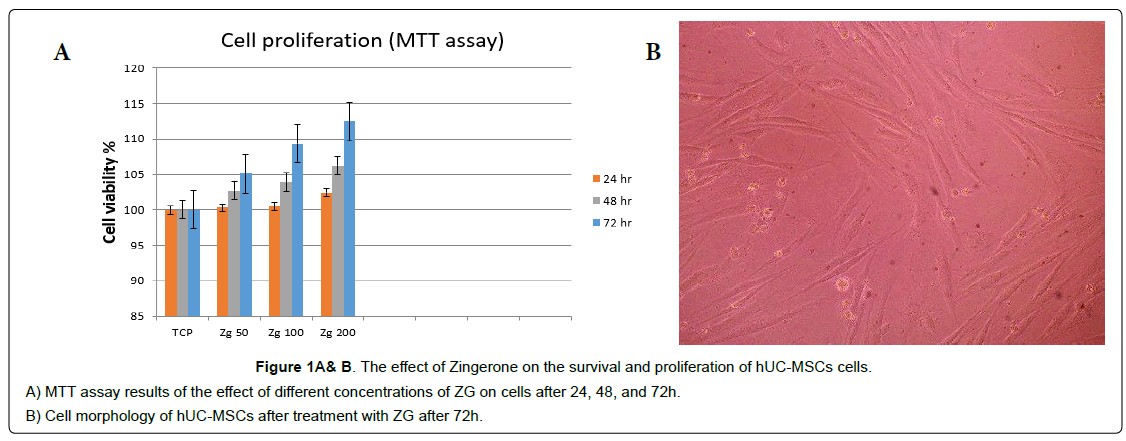

Figure 1A& B: The effect of Zingerone on the survival and proliferation of hUC-MSCs cells.
A) MTT assay results of the effect of different concentrations of ZG on cells after 24, 48, and 72h.
B) Cell morphology of hUC-MSCs after treatment with ZG after 72h.

Treatment of umbilical cord stem cells with Zingerone differentiates cells into osteoblasts.

The expression of RUNX2 and Osterix genes at the mRNA level was investigated by the qRT-PCR method to determine the osteogenic effect of ZG on hUC-MSCs cells. The results showed that after 72 hours of cell treatment in different concentrations of ZG (50, 100, and 200 μM), the expression of the RUNX2 gene increased compared to the control, so the concentration of 200μM showed a significant difference compared to the control (P<0.001). In comparison to the controls, the OSX gene expression also increased with an increasing concentration of ZG (P<0.001) (Figure 2).

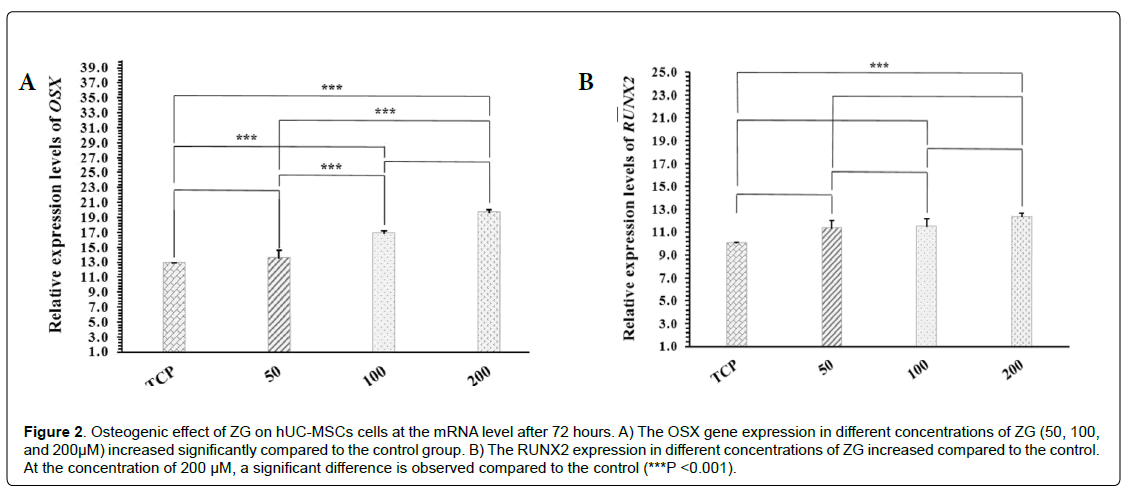

Figure 2: Osteogenic effect of ZG on hUC-MSCs cells at the mRNA level after 72 hours. A) The OSX gene expression in different concentrations of ZG (50, 100, and 200μM) increased significantly compared to the control group. B) The RUNX2 expression in different concentrations of ZG increased compared to the control. At the concentration of 200 μM, a significant difference is observed compared to the control (***P <0.001).

miR-590 expression increases while Smad7 expression decreases in UC-MSCs cells treated with different Zingerone concentrations

QRT-PCR test was performed to detect the effect of Zingerone on miR-590 expression. The results showed that miR-590 had increased expression in a Zingerone dose-dependent manner compared to the control. This increase in expression was especially significant at the concentration of 200 μM compared to the control (P<0.05) (Figure 3A). The Smad7 expression decreased significantly in all doses compared to the control with increasing ZG concentration (P<0.001) (Figures 3B). These data showed that miR-590 and Smad7 were altered in Zingerone-induced UC-MSCs.

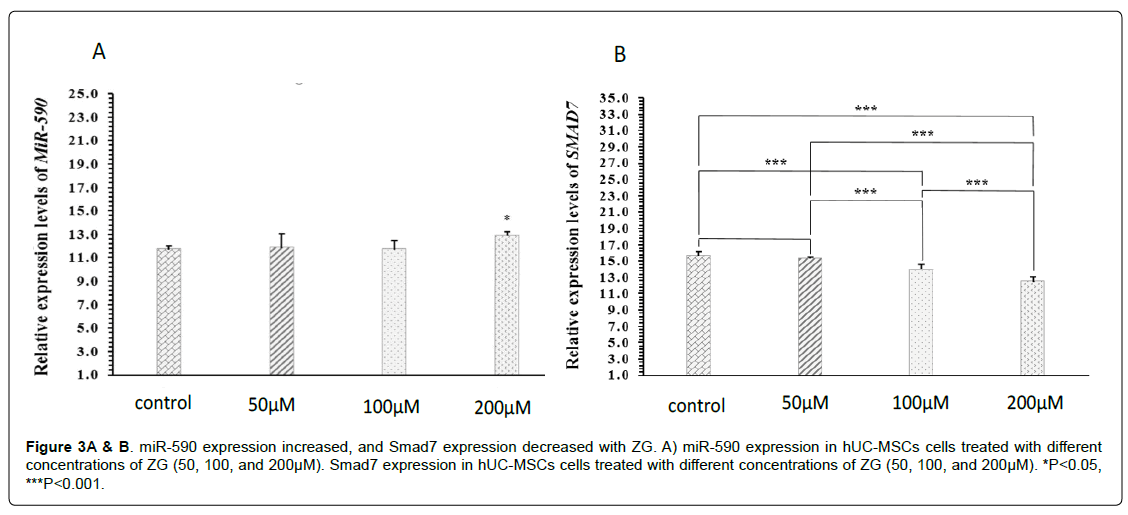

Figure 3A & B: miR-590 expression increased, and Smad7 expression decreased with ZG. A) miR-590 expression in hUC-MSCs cells treated with different concentrations of ZG (50, 100, and 200μM). Smad7 expression in hUC-MSCs cells treated with different concentrations of ZG (50, 100, and 200μM). *P<0.05, ***P<0.001.

Expression of alkaline phosphatase in UC-MSCs cells treated with different concentrations of Zingerone

The osteogenic effect of Zingerone concentrations on hUCMSCs cells after 14 days of culture showed that the expression of alkaline phosphatase enzyme increased with increasing Zingerone concentration, and this increase in expression was significant compared to the controls at a concentration of 200 μM P<0.05 (Figure 4).

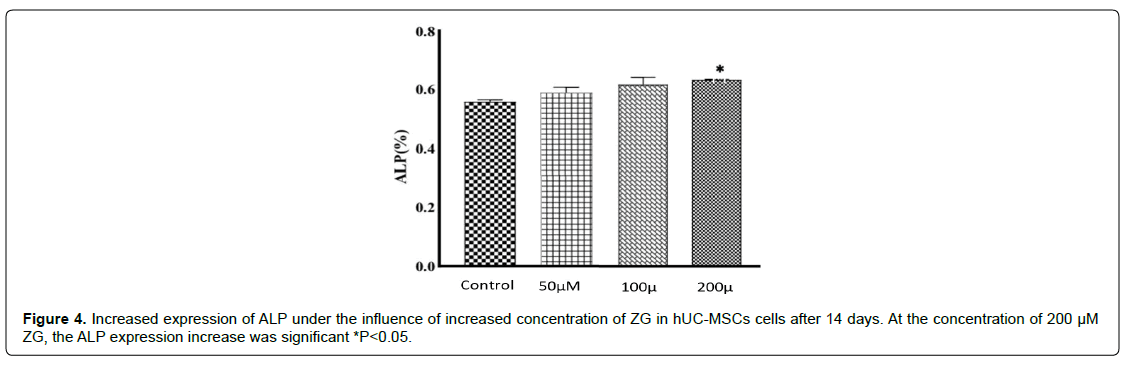

Figure 4: Increased expression of ALP under the influence of increased concentration of ZG in hUC-MSCs cells after 14 days. At the concentration of 200 μM ZG, the ALP expression increase was significant *P<0.05.


Zingerone is a compound isolated from ginger and has positive effects on biological processes [15]. This study evaluated the impact of Zingerone toxicity on hUC-MSCs cells and the effect of Zingerone treatment on the expression of osteoblast differentiation markers. Moreover, an increase in miR-590 expression and a decrease in Smad7 expression of the ZG-induced cells was observed [16]. Considering the role of these two markers in the differentiation process of osteoblasts, these data reveal the possible mechanisms by which ZG differentiates the osteoblastic cells. Due to lifestyle changes, people are more willing to use natural compounds to treat diseases [17]. ZG is a natural compound separated from ginger during the drying process. Zingerone has many biological functions, such as anti-inflammatory, antioxidant, and anti-diarrheal effects. ZG has positive effects on the differentiation of mice mesenchymal stem cells into osteoblasts at the cellular and molecular level [18]. This study also showed that ZG is involved in cell differentiation into osteoblasts by stimulating the expression of differentiation markers such as RUNX2, OSX, and ALP in hUC-MSCs cells.

RUNX2, expressed in osteoblasts and chondrocytes, is reported as an inducer of these cells’ differentiation [19]. ALP is considered a key marker in the early stages of osteoblastic differentiation [20]. OSX is a zinc finger-containing transcription factor essential for bone formation and osteoblast differentiation [21]. In agreement with previous studies, this paper revealed the differentiation function of ZG in osteoblasts, and this function was enhanced through the expression of miR-590 [22]. miRNAs play an essential role in regulating osteoblast differentiation by targeting RUNX2. For example, in one study, miR-30c is upregulated during osteoblast differentiation [23]. New studies show that miR-590-5p promotes the differentiation of osteoblasts and indirectly causes the maintenance and stability of RUNX2 by targeting SMAD7 [24]. In this study, treatment of hUC-MSCs cells with ZG increased the expression of miR-590, which indicated its possible role in regulating Smad7 and protecting RUNX2 in osteoblastic differentiation. Smad7 has a negative role in regulating TGF-β1 signaling and bone formation [25]. Overexpression of Smad7 in mice preosteoblast cells decreases bone formation significantly. The negative effect of Smad7 on osteoblast differentiation is believed to be due to Smurf2-mediated reduction of RUNX2. The results showed the effect of ZG on hUCMSCs differentiation into osteoblasts through miR-590 on Smad7 and the protection of RUNX2.


This study showed that ZG stimulates the differentiation of hUCMSCs into osteoblasts at the cellular and molecular levels. According to the obtained data, the differentiation pathway of these cells is related to the regulatory path of miR-590/Smad7. Therefore, further study of this topic could pave the way to find better means to repair bone.


  1. Hurtado MD, Vella A. (2019) What is type 2 diabetes? Med, 47(1): 10-15.
  2. Google scholar, Cross ref

  3. Chatterjee S, Khunti K, Davies MJ. (2017) Type 2 diabetes. Lancet, 389(10085): 2239-51.
  4. Indexed at, Google scholar, Cross ref

  5. Magnuson MA, Andreone TL, Printz RL, Koch S, Granner DK. (1989) Rat glucokinase gene: structure and regulation by insulin. Proc Natl Acad Sci USA, 86(13): 4838-42.
  6. Indexed at, Google scholar, Cross ref

  7. Leibiger B, Leibiger IB, Moede T, Kemper S, Kulkarni RN, et al. (2001) Selective insulin signaling through A and B insulin receptors regulates transcription of insulin and glucokinase genes in pancreatic β cells. Mol cell, 7(3): 559-70.
  8. Indexed at, Google scholar, Cross ref

  9. Magnuson M, Shelton K. (1989) An alternate promoter in the glucokinase gene is active in the pancreatic β cell. J Biol Chem, 264(27): 15936-42.
  10. Indexed at, Google scholar, Cross ref

  11. Magnuson MA. (1990) Glucokinase gene structure: functional implications of molecular genetic studies. Diabetes, 39(5): 523-7.
  12. Indexed at, Google scholar, Cross ref

  13. Matschinsky FM. (2005) Glucokinase, glucose homeostasis, and diabetes mellitus. Curr Diab Rep, 5(3): 171-6.
  14. Indexed at, Google scholar, Cross ref

  15. Liang Y, Jetton T, Zimmerman E, Najafi H, Matschinsky F, et al. (1991) Effects of alternate RNA splicing on glucokinase isoform activities in the pancreatic islet, liver, and pituitary. J Biol Chem, 266(11): 6999-7007.
  16. Indexed at, Google scholar, Cross ref

  17. Hughes S, Quaade C, Milburn J, Cassidy L, Newgard C. (1991) Expression of normal and novel glucokinase mRNAs in anterior pituitary and islet cells. J Biol Chem, 266(7):4521-30.
  18. Indexed at, Google scholar, Cross ref

  19. Matschinsky FM. (1996) A lesson in metabolic regulation inspired by the glucokinase glucose sensor paradigm. Diabetes, 45(2):223-41.
  20. Indexed at, Google scholar, Cross ref

  21. Matschinsky FM. (2002) Regulation of pancreatic β-cell glucokinase: from basics to therapeutics. Diabetes, 51(3): S394-S404.
  22. Indexed at, Google scholar, Cross ref

  23. Levin B, Routh V, Sanders N, Kang L, Dunn-Meynell A. (2004) Anatomy, physiology and regulation of glucokinase as a brain glucosensor. Front Diabetes, 16: 301-12.
  24. Google scholar

  25. Gloyn AL. (2003) Glucokinase (GCK) mutations in hyper and hypoglycemia: maturity onset diabetes of the young, permanent neonatal diabetes, and hyperinsulinemia of infancy. Hum Mutat, 22(5): 353-62.
  26. Indexed at, Google scholar, Cross ref

  27. Mueckler M, Thorens B. (2013) The SLC2 (GLUT) family of membrane transporters. Mol Aspects Med, 34(2-3): 121-38.
  28. Indexed at, Google scholar, Cross ref

  29. Uldry M, Ibberson M, Hosokawa M, Thorens B. (2002) GLUT2 is a high affinity glucosamine transporter. FEBS lett, 524(1-3): 199-203.
  30. Indexed at, Google scholar, Cross ref

  31. Gremlich S, Bonny C, Waeber G, Thorens B. (1997) Fatty acids decrease IDX-1 expression in rat pancreatic islets and reduce GLUT2, glucokinase, insulin, and somatostatin levels. J Biol Chem, 272(48): 30261-9.
  32. Indexed at, Google scholar, Cross ref

  33. Thorens B. (2015) GLUT2, glucose sensing and glucose homeostasis. Diabetologia, 58(2): 221-32.
  34. Indexed at, Google scholar, Cross ref

  35. Celi FS, Shuldiner AR. (2002) The role of peroxisome proliferator-activated receptor gamma in diabetes and obesity. Curr Diab Rep, 2(2): 179-85.
  36. Indexed at, Google scholar, Cross ref

  37. Fajas L, Auboeuf D, Raspe E, Schoonjans K, Lefebvre AM, et al. (1997) The organization, promoter analysis, and expression of the human PPARγ gene. J Biol Chem, 272(30): 18779-89.
  38. Indexed at, Google scholar, Cross ref

  39. Armoni M, Kritz N, Harel C, Bar-Yoseph F, Chen H, et al. (2003) Peroxisome proliferator-activated receptor-γ represses GLUT4 promoter activity in primary adipocytes, and rosiglitazone alleviates this effect. J Biol Chem, 278(33): 30614-23.
  40. Indexed at, Google scholar, Cross ref

  41. Armoni M, Harel C, Bar-Yoseph F, Milo S, et al. (2005) Free fatty acids repress the GLUT4 gene expression in cardiac muscle via novel response elements. J Biol Chem, 280(41): 34786-95.
  42. Indexed at, Google scholar, Cross ref

  43. Janani C, Kumari BR. (2015) PPAR gamma gene–a review. Diabetes Metab Syndr, 9(1):46-50.
  44. Indexed at, Google scholar, Cross ref

  45. Zhou T, Meng X, Che H, Shen N, Xiao D, et al. (2016) Regulation of insulin resistance by multiple MiRNAs via targeting the GLUT4 signalling pathway. Cell Physiol Biochem, 38(5): 2063-78.
  46. Indexed at, Google scholar, Cross ref

  47. Hou X, Tian J, Geng J, Li X, Tang X, et al. (2016) MicroRNA-27a promotes renal tubulointerstitial fibrosis via suppressing PPARγ pathway in diabetic nephropathy. Oncotarget, 7(30): 47760.
  48. Indexed at, Google scholar, Cross ref

  49. Chen T, Zhang Y, Liu Y, Zhu D, Yu J, et al. (2019) MiR-27a promotes insulin resistance and mediates glucose metabolism by targeting PPAR-γ-mediated PI3K/AKT signaling. Aging (Albany NY), 11(18): 7510.
  50. Indexed at, Google scholar, Cross ref
