Research Article,  J Soil Sci Plant Health Vol: 6 Issue: 1

Routing and Geochemical Properties of Clastic Sediments in Southwestern Iran

Amir Jokar* , Nader Kohansal Ghadimvand, Davood Jahani and Mahdi Mashal

Department of Geology, Faculty of Basic Sciences, North Tehran Branch, Islamic Azad University, Tehran, Iran

*Corresponding Author:Amir Jokar

Department of Geology, Faculty of Basic Sciences, North Tehran Branch, Islamic Azad University, Tehran, Iran

E-mail:[email protected]

Received date: 03 December, 2021, Manuscript No. JSPH-21-34777;
Editor assigned date: 06 December, 2021, PreQC No. JSPH-21-34777 (PQ);
Reviewed date: 20 December, 2021, QC No JSPH-21-34777;
Revised date: 27 December, 2021, Manuscript No. JSPH-21-34777 (R);
Published date: 03 January, 2022, DOI:10.4172/jsph.1000122

Citation: Jokar A, Ghadimvand NK, Jahani D and Mashal M (2022) Routing and Geochemical Properties of Clastic Sediments in Southwestern Iran. J Soil Sci Plant Health 6:1.

Abstract

The Khuzestan plain is located in the southwest of Iran in the Khuzestan province and southwest of the Zagros Mountains. It is a part of the Arabian platform and has a completely sedimentary rock lithology. As one of the most important oil regions of Iran and the Middle East, the plain is of great importance in the geochemical and environmental studies. These studies aim to examine 276 sedimentary samples from different parts of this plain. Initially, the basic sedimentary properties of the samples are studied, especially in terms of grading and particle size changes. Then, the detailed geochemical analysis of the sediments is performed to determine all sediment properties, including the routing, paleoclimatology, and environmental characteristics of the sediments. The results of granulometric studies indicate that the sediments are mainly of silt and clay dimensions, and the particles of sand and gravel dimensions are less frequent in the study areas. Investigating the geochemical properties of the sediments indicates that the most frequent constituent oxides in the study area are Cao, SiO2 and Al2O3, respectively. Also, according to the studies, the most frequent sub-elements in the study areas are Ti, Zr, V, Ce and La, respectively. The classification of the sediments based on the geochemical indicators shows that the sediments are mainly in the range of greywacke and ferruginous shales. In addition, the paleo- climatological studies indicate the arid to semi-arid climate conditions in the sediment source area. The tectonic setting studies in the area based on the geochemical properties of the sediments indicate the tectonic settings of continental island arc and active continental margin. Also, the routing of the sediments indicates the mainly felsic and sometimes mafic source of the mentioned sediments. The study of environmental contamination in the study areas indicates that elements Ni, Cr and Zn are the most frequent heavy metals in the sediments.

Keywords: Khuzestan plain; Geo chemical studies; Clastic sediments; Environmental studies

Keywords

Khuzestan plain; Geo chemical studies; Clastic sediments; Environmental studies

Introduction

The Khuzestan Plain is part of the Mesopotamian Plain and is located southwest of Zagros. It is the geological extension of the northern front of the Arabian platform. This plain is simple in terms of

structure and is limited to very gentle folds with a north-south axis, which follows the general fold axis of the Arabian platform. The plain surface is relatively smooth covered by alluvial sediments, which is composed of coarse-grained alluvial sediments in the northern parts and fine-grained sediments in the southern parts. With an area of about 64,236 square kilometers, Khuzestan province is located in southwestern Iran. About 60% of this province (especially in the western and southern parts) is covered with quaternary sediments [1].

The sediments of this plain mainly include silt, clay, sand, gravel, and evaporates (gypsum and anhydrite). These studies aim to examine the geochemical properties of the sediments due to the high importance of studying the mentioned sediments because of various mineral and environmental uses (including the presence of pollution caused by fine dust and pollution of industrial and mineral sectors).

Geology of Area

The study area is located in southwestern Iran in Khuzestan province and is part of the large Zagros fold belt (Figure 1).

journal-science-location

Figure 1: Location image of Khuzestan plain.

About 60% of Khuzestan province consists of plain and foothill areas where foothills and slopes overlook the northern plains [2]. Therefore, the general slope of the Khuzestan plain is north to south and is gentle due to the smooth land [3]. The maximum elevation in the northern plains of the province is 150m, and the minimum elevation in the Persian Gulf coast is zero [4].

Although the Zagros basin has folded during the upper pliocene dueto the late alpine orogenic phase, the Khuzestan plain has slightly folded and has become a subsided area due to the bedrock stability. Based on the geological maps and surface and subsurface studies conducted in the area, it can be confidently stated that the area under study is located on the alluvial sediments of the present era consisting of fine grained clay and silt and medium-grained sand sediments. The thickness of the sediments gradually increases from north to south towards the coast of the Persian Gulf.

Research Method

The studies conducted in this study are divided into two categories: Field and laboratory studies (Figure 2). For the field studies, after performing basic studies, including the collection of library data and related literature, the desired points were identified through satellite images, and the necessary measures were then taken for field visits. In the field studies, in addition to imaging and examining the sedimentary properties of the area 276 samples were collected for the granulometric and geochemical studies.

journal-science-image

Figure 2: Image of location of surveyed points.

The mentioned samples were subjected to XRD, XRF and ICP MASS geochemical analyses in the laboratory studies after the separation and grading by standard sieves. In addition, Scanning Electron Microscopy (SEM) was used formore detailed mineralogical studies. The results of the experiments were analyzed and carefully interpreted to investigate the sedimentary properties of the samples.

Discussion

Granulometry

Granulometric is the measurement of particle diameters and the identification of the density ratios. In this section, the results obtained from the grain analysis and relevant statistical data are presented and the results are then discussed (Table 1).

Sample NoXYGravell%Sand%Silt%Clay%Kh-230°38'46.7"N48° 03'01.32"E0/294420275/0718/53Kh -530°57'20.50"N48° 04'16.0"E0/362745483/9136465Kh -1130°32'57.7"N48°19'04.1"E0/234434987/5442644Kh -1330°43'51.9"N48°15'27.8"E0/354468282/3544451Kh -1430°49'8.96"N48°16'1.56"E0/1313/9269/1116/85Kh -1630°43'17.7"N48°22'41.6"E0/494291787/8219450Kh -1730°50'22.1"N48°24'06.8"E04438084/7144531Kh.2630°56'17.7"N48°43'00.8"E022/5568/8544355Kh -2730°33'24.2"N48°45'18.9"E00/6482/7716/59Kh -3130°55'41.74"N48°47'46.0"E0/123351276/7943800Kh -3330°36'23.9"N48°53'41.3"E442282133778/4813/74Kh -3430°43'14.0"N48°54'31.1"E0/364450382/7344421Kh -3630°54'24.22"N48°53'56.9"E0/692687780/5244326Kh -3730°34'19.0"N49° 00'48.8"E02185574/3544361Kh -3830°38'24.3"N49° 01'17.2"E0/654426474/8815/45Kh -4330°38'13.87"N49°6'45.0"E016/9171/7114185Kh -4530°49'00.1"N49°07'01.3"E0/261881079/2313Kh -4630°54'05.1"N49°06'22.0"E0/24273684/3344269Kh -4730°33'25.3"N49°12'37.3"E04438579/4344328

Table 1: Some grading results of studied samples and geographical location of samples.

Geochemical studies

The geochemical studies performed on the samples by XRD, XRF, ICP MASS studies presented extensive results, which are examined in the following section.

Study of Oxides: The results of analyzing the samples in the study areas show that CaO, SiO2 and Al2O3 are the most frequent oxides available and the least oxides in the areas are P2O5, SrO, TiO2 and K2O (Table 2, Figure 3).

ElementsAl2o3Sio2Fe2o3caoMgoNa2oK2OTio2P2o5SroSample No.Kh-27.4834.255.5628.966.583.140.550.57780.17410.105Kh -37.6335.636.4330.57.262.530.510.59550.1680.165Kh -410.7730.235.124.33.563.470.560.460.17290.081Kh -58.7819.146.5934.24.342.770.550.68910.21210.075Kh -88.7618.227.1636.26.331.650.620.6160.1920.086Kh -118.0820.256.4337.494.511.640.510.50470.18690.071Kh -128.2519.556.3433.725.91.320.50.54540.18680.093Kh -137.0245.885.7331.95.323.490.480.53080.16410.062Kh -146.388.344.5638.754.291.760.420.52090.19650.068Kh -166.47.435.9941.975.861.420.450.62620.20130.07Kh -178.828.446.2935.954.171.050.510.64020.20980.063Kh -188.18.195.6740.993.880.550.480.61570.24070.071Kh -207.4622.955.2438.894.190.70.430.55080.21940.066Kh -238.637.415.9939.874.691.520.570.48640.18350.128Kh -246.996.014.2338.475.351.630.450.4260.20030.133Kh -256.348.114.6441.974.952.990.440.4180.21580.121Kh -266.959.066.3441.975.651.560.440.62230.22650.096Kh -276.748.335.7338.756.113.140.530.52390.1860.086Kh -285.598.713.5141.974.021.290.420.38530.18830.142Kh -295.199.223.6741.976.061.690.40.43050.20670.115Kh -306.668.925.4141.976.233.030.480.49110.21680.128Kh -318.28.266.6641.976.012.410.480.64370.24750.095

Table 2: Some results from geochemical study of samples.

journal-science-average

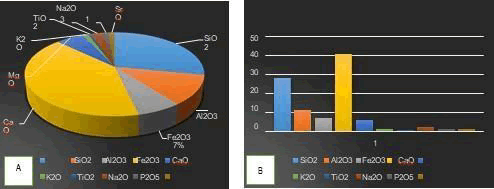

Figure 3: Average percentage of oxides in studied samples; (A) Pie chart and (B) Bar chart.

Sub-Elements: After reviewing the results from the study of sub- elements in the areas, the most frequent sub-element is Titanium (Ti) followed by Zr, V, Ce, La, respectively. Figure 4 shows the average frequency percentage of sub-elements in ppm (Table 3 and Table 4).

ElementsCeLaNbScTaThYTiVZrCoSample No.Kh-220.49.695.847.780.352.487.18346470.517712.8Kh-319.29.525.927.70.52.797.62357087.921116.3Kh-419.89.865.47.510.362.97.2127588716514.9Kh-525.712.48.688.360.773.099.46413184.923115.9Kh-824.912.87.318.910.743.379.12369310123518.5Kh-1118.79.565.816.550.342.617.27302689.813214.9Kh-1220.6106.537.070.62.887.53327088.320316.4Kh-1317.29.065.275.760.272.286.16318282.517914.2Kh-1422.111.15.925.940.352.78312371.417812.8Kh-1622.712.28.116.640.363.078.93375486.920514.8Kh-173216.711.210.40.684.3316.3383897.722516Kh-1833.617.912.29.330.753.9616.2369184.921815.8Kh-203819.512.910.51.054.7917.6330285.117914.4Kh-2330.316.510.39.670.944.3114291692.722015.2Kh-2426.114.48.7280.383.6511.7255468.816411.6Kh-2525.613.68.357.450.423.4212.2250674.717211.5Kh-2637.720.111.811.40.634.9118.237319321116.2Kh-2729.216.711.111.20.524.1414.8314183.718713.5Kh-282312.56.336.340.053.0911.5231059.515310.1Kh-2925.713.77.336.040.193.1110.8258158.51479.94Kh-3017.910.25.714.940.322.47.8429448420513.1Kh-3132.418.98.928.650.483.8313.838599222817Kh-3315.89.625.255.230.232.097.41262973.917211.5Kh-3423.113.57.076.010.353.139.03304184.416413.9Kh-3521.913.67.377.120.423.3410.7299294.118613.6

Table 3: Results from study of rare earth elements in area.

ElementsCeDyErEuGdHoLaLuNdPrScSmTaTbTmYYbCdSample No.KH-220.41.191.10.511.650.39.690.087.742.357.781.580.350.260.137.180.78<5.00KH-319.21.311.20.521.730.369.520.078.952.17.71.590.50.310.167.620.87<5.00KH-419.81.341.270.481.590.339.860.089.22.257.511.510.360.290.177.210.75<5.00KH-525.71.561.840.592.380.4212.40.09103.048.361.910.770.370.189.460.94<5.00KH-824.91.671.610.72.070.4512.80.19.712.98.911.840.740.410.29.121.07<5.00KH-1118.71.181.130.451.590.289.560.078.672.196.551.530.340.260.147.270.76<5.00KH-1220.61.291.340.611.860.35100.099.262.667.071.660.60.290.167.530.84<5.00KH-1317.21.050.870.461.520.289.060.067.352.135.761.340.270.270.146.160.72<5.00KH-1422.11.451.220.521.910.3611.10.0810.62.925.941.790.350.340.1580.76<5.00KH-1622.71.511.10.491.880.3612.20.110.92.966.641.820.360.320.168.930.85<5.00KH-17322.961.80.663.080.5616.70.1414.24.2110.42.650.680.480.2516.31.61<5.00KH-1833.62.461.770.652.740.5417.90.1514.53.929.332.820.750.480.2416.21.67<5.00KH-20382.912.140.773.450.6419.50.1816.25.4310.53.331.050.520.3217.61.98<5.00KH-2330.32.251.560.572.480.4516.50.15133.939.672.50.940.370.24141.62<5.00KH-2426.12.171.660.532.270.4114.40.110.73.3782.20.380.330.1911.71.5<5.00KH-2525.61.981.520.482.190.3913.60.119.93.437.452.150.420.30.2212.21.41<5.00KH-2637.73.082.270.863.260.7320.10.216.94.6511.43.530.630.540.3118.22.2<5.00KH-2729.22.451.740.582.510.516.70.13123.9811.22.360.520.430.2214.81.66<5.00KH-28232.021.280.621.980.4112.50.110.73.186.342.210.050.340.1811.51.25<5.00KH-2925.71.911.210.512.150.3813.70.1211.83.746.042.320.190.360.1710.81.1<5.00KH-3017.91.150.880.281.260.2310.20.077.952.84.941.320.320.170.137.840.75<5.00KH-3132.42.271.70.582.870.518.90.1713.94.588.652.480.480.410.2313.81.34<5.00KH-3315.80.960.780.31.060.249.620.077.292.385.231.220.230.170.127.410.71<5.00KH-3423.11.451.170.41.670.3613.50.1103.36.011.720.350.280.169.030.96<5.00KH-3521.91.551.140.411.690.3413.60.1211.23.837.121.680.420.260.1710.71<5.00KH-36191.230.960.361.430.35120.089.312.66.311.490.550.220.159.330.82<5.00KH-3720.71.521.110.531.70.3612.70.110.53.176.121.860.260.260.159.370.9<5.00KH-3820.81.641.210.421.620.3513.70.1102.96.651.650.350.270.1710.21.03<5.00KH-3921.91.581.190.41.620.3713.50.1110.42.966.951.80.390.240.1610.51.05<5.00

Table 4: Results from study of rare earth elements in area.

journal-science-frequency

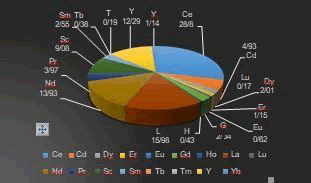

Figure 4: Average frequency percentage of rare earth elements in study areas.

Discussion of geochemical results

Study of main elements based on aluminum scale: During the diagnosis, weathering and metamorphism, aluminum oxide is considered a constant factor [4], which is used as a scale in the study of the main elements of Clastic sediment.

However, CaO, Na2O and K2O are known as the most mobile phases in sandstones. The average percentage of aluminum oxide in the studied samples of regional sediments is about 11.35%. As can be seen in Figure 5, aluminum oxide shows a positive trend with oxides of K2O, MgO, TiO2, a positive trend with Fe2O3, and a negative correlation with CaO oxide in these areas.

journal-science-investigation

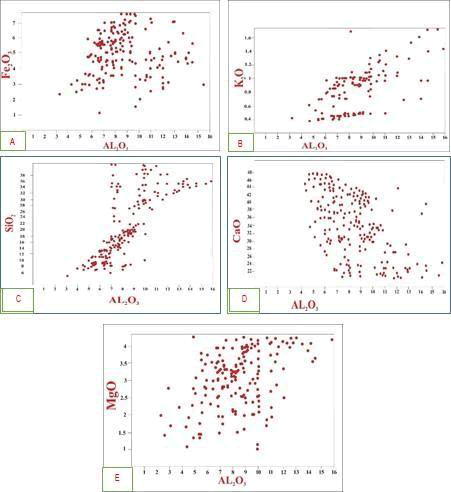

Figure 5: Investigation of changes in main oxides with aluminum oxide. A) Positive relationship between Al2O3 and Fe2O3, B) Positive relationship between Al2O3 and K2O, C)

Positive relationship between Al2O3 and SiO2, D) Negative relationship between Al2O3 and Cao, E) Positive relationship between Al2O3 and MgO. The changes of two TiO2 with Al2O3 oxides show that they have a positive trend towards each other (Figure 6(A)). The average percentage of TiO2 oxide in the area is 0.7%. The element titanium is more concentrated in phyllosilicates and is a good indicator for interpreting the source rock due to the immobility during the sedimentary processes compared to other elements [5]. The increase of Al2O3 together with TiO2 indicates the association of TiO2 with phyllosilicates in these areas.

journal-science-titanium

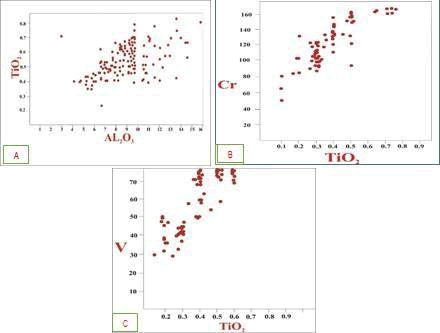

Figure 6: Relationship between Titanium Oxide (TiO2) and Aluminum Oxide (Al2O3) and elements Vanadium (V) and chromium; A)positive relationship between TiO2 and Al2O3, B) positiverelationship between TiO2 and Cr, C) Positive relationship betweenTiO2 and V. Also, the study of changes in elements V and Crwith titanium oxide shows a positive relationship between this oxideand the mentioned elements (Figure 6(B, C)). Since Cr and V areassociated with iron and titanium in heavy minerals, the correlation ofCr and V with TiO2 oxide indicates the presence of heavy minerals inthe areas. In the study area, the petrographic data confirm theexistence of heavy minerals [6].

The same correlation trend can be observed in the comparison of aluminum oxide Al2O3 with Scandium (Sc), Vanadium (V), Thorium (Th), Cobalt (Co), Niobium (Nb), Chromium (Cr), and Lanthanum (La) (Figure 7). One of the reasons for the presence of heavy minerals is the positive correlation between these elements, especially Al2O3 and Cr, in the areas. The presence of the heavy elements has been identified in petrographic studies.

journal-science-aluminium

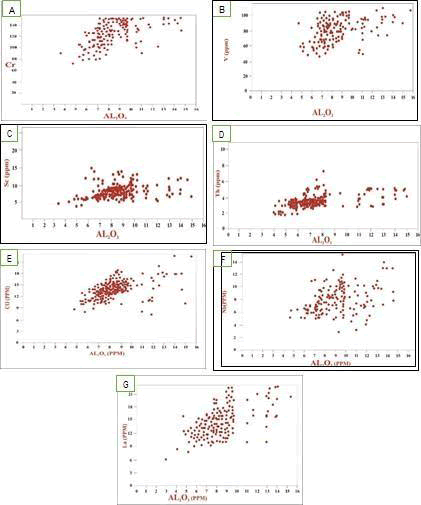

Figure 7: Relationship between aluminum oxide and sub- elements.A).Positive relationship between Al2O3 and Cr, B) Positive relationship between Al2O3 and V, C) Positive relationship between Al2O3 and Sc, D) Positive relationship between Al2O3 and Th, E) Positive relationship between Al2O3 and Co, F) Positive relationship between Al2O3 and Nb, G) Positive association between Al2O3 and

Geochemical classification of sediments: Apart from using petrographic methods, researchers use a combination of main elementsinthe classification and the separation of mature and immature sediments [7]. Geochemical classification of sandstones based on the log (Fe2O3/K2O) vs log (SiO2/Al2O3) diagram is used to classify sandstones [8]. Most of the samples studied in the plotted diagram are among ferruginous shales (Figure 8).

journal-science-sand

Figure 8: Classification of sand samples studied in diagram.

Geochemical classification of sandstones based on the classification of clastic sandstones, which is based on chemical maturity indices. According to this diagram, most of the samples in the area have a greywacke composition, which is consistent with the petrographic data (Figure 9).

journal-science-geochemical

Figure 9: Geochemical classification of samples studied on diagram.

Studies of primary weathering of sediments:

In the study of sandstones that have not been strongly affected by digenesis and metamorphism or other alteration and weathering processes, the geochemical analysis of the main elements of clastic rocks is a suitable tool for determining the tectonic setting [9]. The Chemical Index of Alteration (CIA) has the most application in the relation proposed by [10]. This index is obtained by the following formula where oxides are expressed in molar ratio.

CIA=(Al2O3/(Al2O3+CaO*+Na2O+K2O))×100

The average of this index for 276 samples studied in the area is 19.97, which indicates the hot arid climate conditions of the source area.

ElementsCIAElementsCIASample No.Sample No.D-218/64D-3325173D-318/53D-3413/82D-427/54D-3516/30D-518/96D-3615/37D-818/55D-3744479D-1116/93D-3844425D-1218/84D-3913/75D-1316/37D-4017/61D-1413/49D-4313/71D-1626999D-4414/89D-1744305D-4513/53D-1816/16D-4617/68D-2015/71D-4713/21D-2344364D-4915/23D-2414/70D-5311994D-2545992D-5428460D-2613/64D-5614855D-2713/71D-5715/89D-2812724D-5815/75D-2919633D-5925903D-3028460D-6013/14D-3115/45D-6144391

Table 5: Average CIA index in study areas. Presented another weathering index for sandstones with variable amounts of CaO. This index is defined as follows:

CIW'=(Al2O3/(Al2O3+Na2O))×100

The results of this index were obtained, on average, equal to 82.66 for the samples of the area. This value indicates the long distance

sediment transport from the origin to the sedimentation area and the hot arid climate of the source area for the samples (Table 6).

ElementsCIWElementsCIWSample No.Sample No.D-270/43D-3472/65D-375/10D-3569/89D-475/63D-3695/46D-576/02D-3759/74D-884/15D-3884/21D-1183/13D-3977/43D-1286/21D-4070/67D-1366/79D-4386/27D-1478/38D-4486/90D-1681/84D-4578/00D-1789/36D-4691/74D-1893/64D-4776/25D-2091/42D-4984/76D-2385/02D-5375/70D-2481/09D-5476/59D-2567/95D-5686/29D-2681/67D-5781/16D-2768/22D-5880/47D-2881/25D-5976/45D-2975/44D-6087/02D-3068/73D-6183/70D-3177/29D-6374/71D-3375/17D-6476/83

Table 6: Average CIW index in study areas.

The moderate weathering obtained for the samples may indicate the intense activity of the sediment recycling in semi-humid climates or the presence of recycling in semi-arid to arid climates. In addition, from the A-CN-K diagram, the weathering path can be obtained from both weathering profile method and thermodynamic estimation method.

Plotting the samples in this diagram shows that the data are close or parallel to the A-CN line. Plotting the samples in this diagram shows that the samples area do not show the dispersion and a wide range relative to the line connecting the feldspars in the diagram (Figure 10), which indicates the severe chemical weathering or the presence of recycling in clastic sediments.

journal-science-samples

Figure 10: Plotting samples of study areas in combined space of A- CN-K diagram and its amount relative to line connecting feldspars. In the source area, the paleoclimate conditions can be predicted by plotting the diagram of SiO2 against Al2O3+K2O+Na2O. According to this diagram (Figure 11), the paleoclimate in the source area during the sedimentation in the study area was arid to semi-arid climate. These results are completely consistent with those obtained from the diagram [12].

xxxxxx

Figure 11: Diagram for determination of paleo climate conditionsin area based on diagram.

Determination of tectonic setting of sediments: The Clastic sediments of oceanic island arcs, continental island arcs, active continental margin, and passive margin can be distinguished by changing the values of the main elements. Using the diagram to determine the tectonic setting of the studied sediments, it is found that the samples of this area are mainly present in the active continental margin (Figure 12) [11].

journal-science-tectonic

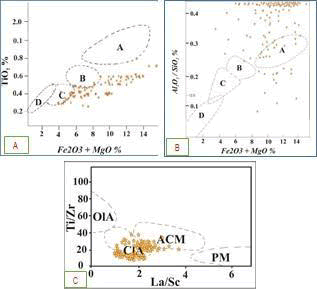

Figure 12: Determination of tectonic setting of sediments; A) diagram of composition of main elements on Bahatia's diagram based on TiO2 index vs Fe2O3+MgO, B) separating diagram based on ratioof Al2O3/SiO2vs Fe2O3+MgO according to diagram. C) Plotting composition of sub- elements of clastic sediments in area on tectonic setting diagram based on La/Sc index against Ti/Zr. A=OIA: Oceanic Island Arc, B=CIA: Continental Island Arc, C=ACM: Active Continental Margin, D=PM: Passive continental Margin. In addition to the presented diagrams, todetermine the tectonic setting of the clastic samples of the area, the diagram of was used based on sub-elements. As can be seen from thisdiagram (Figure 13(A)) reviewing the diagram of [13] identified the geological setting of the active continental margin for the samples in the study area (Figure 13(B)).

journal-science-sediments

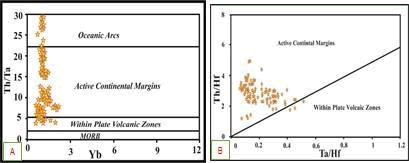

Figure 13: Determination of tectonic setting of sediments in area based on diagrams. A) Determination of tectonic setting based on ratio of Th/Ta to Yb in study areas based on diagram. B) Diagram for determination of tectonic setting based on ratio Th/Hf to Ta/Hf in study areas.

Ratios of main elements in relation to source rock: The clastic sediments of oceanic island arcs, which are derived from calc-alkaline andesites, have higher levels of Na2O, Al2O3, TiO2 and Fe2O3 and relatively lower levels of SiO2 and K2O, which distinguishes them from other sedimentary samples. In addition, from the determination of the source rock of sediments using main and sub- elements, the felsic source rock contains higher values of Sr and Ba and lower values of Ni, Co, Cr, V compared to mafic source rock [14].

The increases of Ni, Co, Cr, V along with MgO in the studied samples indicate the mafic source of the sediments [15]. As can be seen in Figures 14(A-D), most of the samples have a felsic source and some of the samples have a mafic source, which indicates the transport of sediments from both sources to the mentioned areas (Figure 14).

In the diagram (Figure 14(A)0, the coherent increase in the percentages of V and MgO indicates the mafic source of the sediments. The increasing trend in the frequency of Cr and MgO indicates the mafic source of the sediments (Figure 14(B)). On the other hand, the coherent mutual increase of Co with MgO indicates the mafic source of the sediments (Figure 14(C)). Finally, the frequency ofNi along with MgO also indicates the mafic source of the sediments inthe study areas (Figure 14(D)).

journal-science-ratios

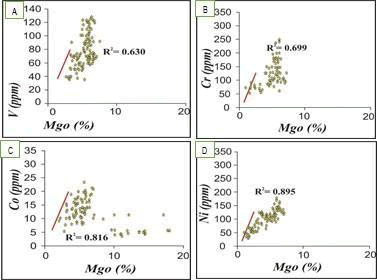

Figure 14: Ratios of main elements in relation to tectonic setting in area based on diagram.

1.Relationship between percentage of magnesium oxide and sub-element V, B) Relationship between percentage of magnesium oxide and sub-element Cr, C) Relationship between percentage of magnesium oxide and sub- element Co, D) Relationship between percentage of magnesium oxide and sub- element Ni. Using the diagrams obtained from plotting TiO2 vs Zr, the basic source rock can be distinguished from the intermediate and felsic limits (Figure 15(A)). In acidic rocks, sub- elements such as Nb, Zr, Hf, Th and La are more frequent, and in mafic rocks, elements such as Ni, Cr, Co, Sc are more These elements to separate source rock (Figure 15(B)). On the other hand, diagrams of Cr/V vs Y/Ni and La/Th vs Hf are used to identify source rock (Figure 15(C)).

journal-science-determination

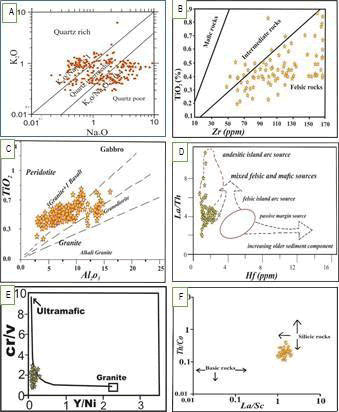

Figure 15: Determination of source rock of sediments in study areas; A) Determination of source composition based on Na2O-K2O diagram in studied sediments, B) Plotting values of studied samples on TiO2 and Zr diagrams of Al2O3 vs TiO2 to determine source of studied sediments based on diagram. C) In addition, the La/Th vs Hf diagram was used for the source rock composition of sediments in the study areas. D) Plotting values of trace elements for studied samples. E) As shown in diagram of La/Th vs Plotting sub-element values of studied samples on diagram of Cr/V vs Y/Ni, F) Source rock composition of studied samples on diagram of Th/Co vs La/Sc.

As shown in Figure 15(A), the amount of TiO2 in the area varies between 0.19 and 0.91%, while the amount of Zr in this area generally varies between 56.4 and 273.4 ppm (Figure 15(A)). According to this diagram, the sediments in the area are probably of felsic source. The samples are of siliceous source in the Th/Co vs La/Sc diagram (Figure 15(B)0 in this study area. In addition, the La/Th vs Hf diagram was used for the source rock composition of sediments in the study areas (Figure 15(C)). Based on this diagram, it can be concluded that felsic source rock can be suggested for the sediments of the area.

Mineralogical studies

The mineralogical studies by X-Ray Diffraction (XRD) along with the geochemical studies show very good information about the mineralogical properties of the studied sediments. In these studies, 276 samples of the area were analyzed using XRD (Table 7).

No.OriginMain Mineral PhaseSub-mineral PhaseRare Mineral Phase1domesticcalcite, quartz, halitealbite, gypsum, dolomite, chlorite, illite–2domesticcalcite, quartz, halite, dolomitealbite, gypsum, chlorite, muscovite–3domesticcalcite, quartz, halitealbite, gypsum, chlorite, illitedolomite4foreigncalcite, halitealbite, dolomite, chlorite, quartzgypsum, illite5foreigncalcite, quartz, halite, dolomitealbite, chlorite, illite–6foreigncalcite, quartz, albite,dolomiteillitechlorite, halite, orthoclase7foreigncalcite, quartzillite, albite, dolomite, halitechlorite, gypsum8domesticcalcite, quartzillite, albite, dolomite, hematite–9domesticcalcite, quartz, haliteillite, albite, dolomite, chlorite–10domesticcalcite, quartz, haliteillite, albite, dolomite, chlorite–11foreigncalcite, quartz, dolomitechlorite, albite, halite, gypsum–

Table 7: Sample of mineralogical studies performed on some samples. The data from these studies show that calcite, quartz, dolomite and halite are the most frequent minerals in the studied deposits. In this area, albite, gypsum, chlorite and illite are among the sub-minerals in these deposits (Figures 16-20).

journal-science-diffraction

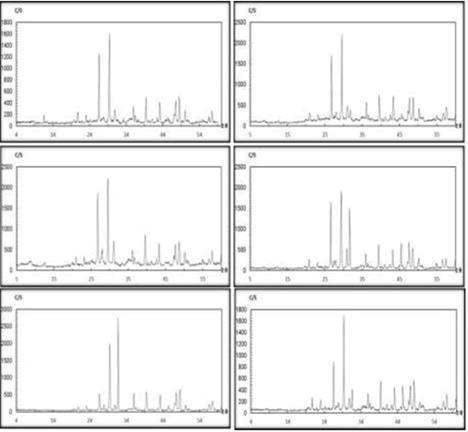

Figure 16: X-ray diffraction pattern of some studied samples.

journal-science-electron

Figure 17: Electron microscopy images of studied calcite samples.

journal-science-microscopy

Figure 18: Electron microscopy images of studied clay samples.

journal-science-images

Figure 19: Electron microscopy images of studied evaporate samples.

journal-science-metals

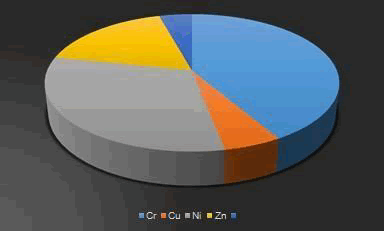

Figure 20: Frequency of heavy metals in study areas (%).

Environmental properties

In the comprehensive study of sediments in the area, the accurate environmental studies are necessary, especially in places close to residential areas.

Environmental contamination

Study of heavy metals: One of the most important environmental contaminants is soil contamination with heavy metals. In terms of toxicity and stability, they are one of the most dangerous groups of contaminants, and due to the soil contamination characteristics, the accumulation in tissues of living organisms, long lifespan, and toxicity are of great ecological and biological importance [16].

In these studies, 276 samples of sediments in the area were examined and evaluated (Tables 8). According to the studies, the average frequency of the metalsin the area in order of frequency include Zn with a frequency of 48.86 ppm, Pb with a frequency of

31.25 ppm, Cu with a frequency of 15.75 ppm, and Cd with a frequency of 4.12 ppm (Figure 20).

Discussion of contamination indicators: As can be seen from the data obtained from the average contamination caused by different elements (Table 8), the area has moderate contamination in terms of Zn, Ni and V elements.

ElementsCrCuNiZnCoSample No.D-292/54424811449/444420D-31334430614368/744271D-413119/012455/344453D-51144434612157/744454D-81614425415667/544334D-111204425311560/144453D-121484433613656/744302D-131154436411450/744241D-14109442719245/044420D-161214424810586/344422D-171354440511861/416/0D-181384430410955/644423

Table 8: Results obtained regarding amount of CF in area.

The results of the Contamination Factor (CF) method for the study of 276 samples in the study area are somewhat similar to the results of the method of the contamination calculation and indicate that in the area. These contaminants are probably caused by drilling fluids or oil leakage through the joints and fissures of the cap rock to the upper parts in the upstream of this area [17].

Conclusion

The most important results are summarized as follows. The results of granulometric studies indicate that the sediments are mainly of silt and clay size, and the particles of sand and gravel size are less frequent in the study areas. The study of geochemical properties of the sediments indicates that the most frequent constituent oxides in the study area are Cao, SiO2 and Al2O3, respectively. The results of the studies show that calcite, quartz, dolomite and halite are the most frequent minerals in the studied deposits. In this area, albite, gypsum, chlorite and illite are among the sub-minerals in the deposits.

According to the studies, the most frequent sub-elements in the study areas are Ti, Zr, V, Ce and La, respectively. The classification of sediments based on the geochemical indicators shows that the sediments are mainly in the range of greywacke and ferruginous shale. In addition, the study of pale climate conditions indicates the arid to semi-arid climate in the source area of the sediments. The study of the tectonic setting in the study area based on the geochemical properties of the mentioned sediments indicates the tectonic settings of continental island arc and active continental margin. The routing of thementioned sediments indicates the mainly felsic and sometimes mafic source of the sediments. The study of environmental contamination in the study areas indicates that the elements Ni, Cr and Zn are the most frequent heavy metals in the sediments.
