Shielding the Electromagnetic Waves by Inserting Conductive Lightweight Materials into Woven Curtains

Izabela Ciesielska Wróbel1*, Jos Knockaert2, Gilbert De Mey3 and Lieva Van Langenhove1

1Centre for Textile Science and Engineering, Department of Materials, Textiles and Chemical Engineering, Ghent University, Belgium

2Department of Electrical Energy, Systems and Automation, Campus Kortrijk, Ghent University, Belgium

3Department of Electronics and Information Systems, Ghent University, Belgium

*Corresponding Author : Izabela Ciesielska Wróbel
Centre for Textile Science and Engineering, Department of Materials, Textiles and Chemical Engineering, Ghent University, Belgium
Tel: + 092645830
Fax: 092645832
E-mail: [email protected]

Received: November 24, 2017 Accepted: January 11, 2018 Published: January 16, 2018

Citation: Wróbel IC, Knockaert J, De Mey G, Langenhove LV (2018) Shielding the Electromagnetic Waves by Inserting Conductive Lightweight Materials into Woven Curtains. J Fashion Technol Textile Eng S4:001. doi:10.4172/2329-9568.S4-001

Abstract

This preliminary study presents screening curtains made of electro-conductive yarns introduced into woven structures, which provide similar screening abilities as those offered by commercially available metallic plates. The curtains have a major advantage of being flexible so that they are easier to install and to remove. In order to provide a lightweight solution to compare the existing solutions present at the market, one proposes using (1) a carbon yarn (200 tex) and (2) a nickel-coated carbon yarn (1420 tex) as wefts in the woven structures responsible for conducting. The fabrics were separately tested in the electromagnetic compatibility (EMC) anechoic room, which is non-reflective and echo-free laboratory chamber. Transmitting and receiving antennas were installed inside of this chamber. The antennas configuration was also changed to observe the influence of these devices set-up on the screening abilities of the curtains. The preliminary results indicated that in the frequency of 628 MHz, the screening ability of the fabric made of (2) was 57.77 dB.

Keywords: Shielding ability of fabrics; Conductive fabrics; Electromagnetic waves; Protection against electromagnetic waves

Introduction

There are many sources of the electromagnetic radiation (EMR) present in the closest environment of humans and some of them may be dangerous to their health. One often uses the phrase “electromagnetic pollution” to characterize the phenomenon of the presence of this EMR [1-3]. Shielding electromagnetic waves can be easily executed by metallic plates placed in the area where such pollution exists. However, this solution is not practical as the plates are heavy and not flexible. Unlike naturally existing EMR, the presence of the one, which is artificial, is increasing and it has a negative impact of living organisms [1]. It is difficult to identify clearly and characterize all the potential risks coming from the fact of being exposed to EMR and also quantify all the exposure factors, e.g. frequency, time, body zone [1,2,4]. One of the most important steps, which were taken to protect humans from EMR was screening the areas which were occupied by them. Depending on the requirements different materials are utilized to screen the EMR and these materials are applied in different configurations. Among commercially available solutions for shielding of EMR one may find knitted [5,6] and woven structures [7] as well as non-wovens and nets. In terms of raw materials for screening, one utilizes the electrical conductors and ferromagnetic materials and their compounds, e.g. copper, iron, nickel, steel, aluminum, gold, silver and cobalt, iron, copper and manganese. Not all of the mentioned materials are easily applicable into thread textiles - like products and therefore into fabric structures due to their stiffness and fragility when in the form of thread-like item. As a consequence, different types of raw materials and a different manner of their application into the screening materials offer different ranges of screening abilities.

The purpose of the study was to determine if the carbon yarn, with and without the coating, being a conductor may provide with a protection against EMR when introduced into woven structure as a weft.

Materials and Methods

In order to provide a lightweight solution to compare the existing solutions present at the market, one proposes using (1) a carbon yarn (200 tex) and (2) a nickel-coated carbon yarn (1420 tex) as wefts in the woven structures responsible for conducting. Thus, the first fabric in the current study was made up of polyester warp yarn (16.7 tex) and (1) carbon weft yarn. The second fabric was made of the same warp as in case of the first fabric and (2) nickel-coated carbon weft yarn. Both fabrics have a plain weave. Due to the possibility of electrical discharges generation while weaving process, the fabrics were made in the experimental facility of Picanol, Belgium.

Figures 1 and 2 present woven structures with the carbon weft and with the nickel-coated carbon weft, respectively.

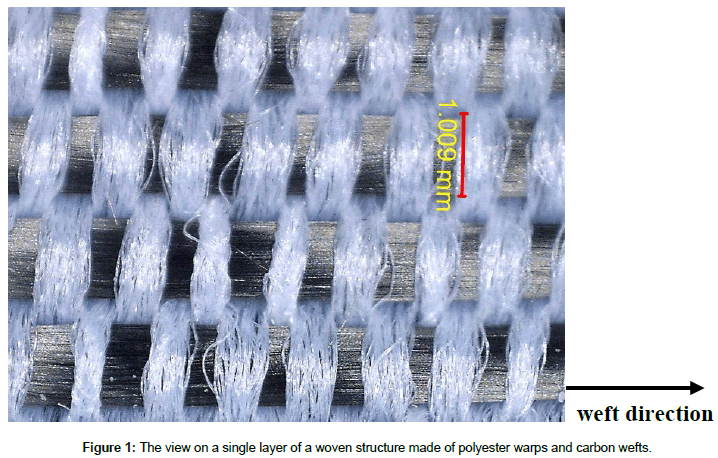

Figure 1: The view on a single layer of a woven structure made of polyester warps and carbon wefts.

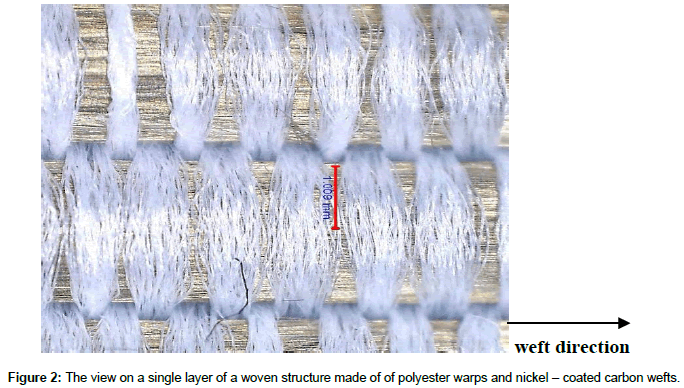

Figure 2: The view on a single layer of a woven structure made of of polyester warps and nickel – coated carbon wefts.

Both images were taken by OneBird Smart 5M 300X USB Digital Microscope Camera Video With MicroCapture.

The characteristics of both fabrics were presented in Table 1.

Parameter Fabric (1) Fabric (2)
Structure Plain weave
Warp 16,7 tex PES
Warp yarns density [qty/dm] 320
Weft
Liner density [tex]
Coating
No of filaments
Filament diameter [µm]
Density [g/cm3]
Twist [tpm, type]
Linear electrical resistance [Ω/m]
Carbon
200 tex
-
3000
7
1.76
15 Z

101.62
Carbon
1420 tex
0.25 µm of Ni
12000
7.5 incl. Coating
2.70
0

2.26
Weft yarn density [qty/dm] 107 61
Commercial name TENAX ® - E HTA40* TENAX ® - J HTS40*

Table 1: Characteristics of yarns and woven structures – screens.

HTA40 is a classic Tenax® high performance carbon fiber. The high tenacity (HT) fibers provide excellent mechanical laminate properties.

HTS40 is a family of high strength/standard modulus aerospace grade carbon fibers produced in Japan (J) and Europe (E) for use as reinforcement in high performance composites. These fibers are produced from poly-acrylonitrile (PAN) precursor and are surface treated to promote adhesion to organic matrix polymers.

Testing Set-up

The tests of the screens were performed in an anechoic room, which is non-reflective and echo-free laboratory chamber of Ghent University in Kortrijk Campus. The test was divided into four parts and in each part the set-up of the antennas (signal transmitter and signal receiver) was different (vertical or horizontal) to observe how this change of antennas configuration influences the overall ability of the fabrics to screen the transmitted signal between antennas. As Figure 3a and 3b present, the first antenna was placed in a metal cabinet having one of the walls filled by a tested screen. The second antenna is partially visible in Figure 3b and fully visible in Figure 3c.

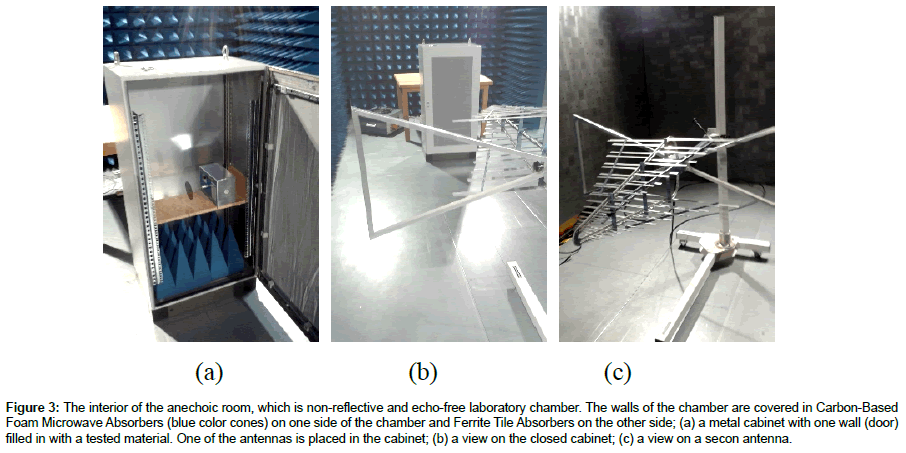

Figure 3: The interior of the anechoic room, which is non-reflective and echo-free laboratory chamber. The walls of the chamber are covered in Carbon-Based Foam Microwave Absorbers (blue color cones) on one side of the chamber and Ferrite Tile Absorbers on the other side; (a) a metal cabinet with one wall (door) filled in with a tested material. One of the antennas is placed in the cabinet; (b) a view on the closed cabinet; (c) a view on a secon antenna.

The four set-ups of antennas were as follows:

· antenna inside in vertical position (V), antenna outside in vertical position (V);

· antenna inside V, antenna outside H;

· antenna inside H, antenna outside H;

· antenna inside H, antenna outside V.

The range of the signals applied for tests in the characterized experiments was starting from 0 Hz through extremely low frequencies (Hz) up to ultra-high frequencies (GHz), which in case of this test was 1 GHz.

Results

The results indicated that the fabric containing nickel-coated carbon wefts presented better shielding efficiency of the antenna signals than the fabric containing carbon wefts. Figure 4 presents the changes in shielding efficiency of this screen in the range of frequency from 0 up to 1 GHz and Figure 5 presents changes in shielding efficiency of the same screen in the same range of frequencies versus a reference test (Table 2).

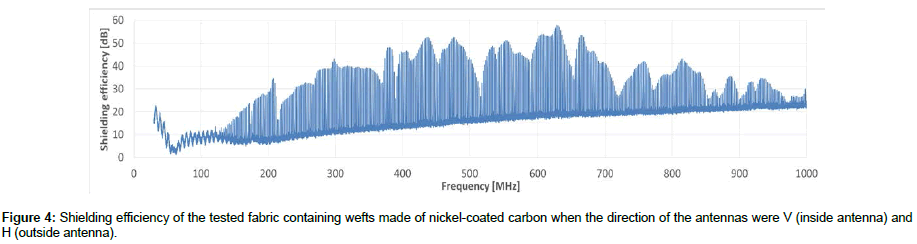

Figure 4: Shielding efficiency of the tested fabric containing wefts made of nickel-coated carbon when the direction of the antennas were V (inside antenna) and H (outside antenna).

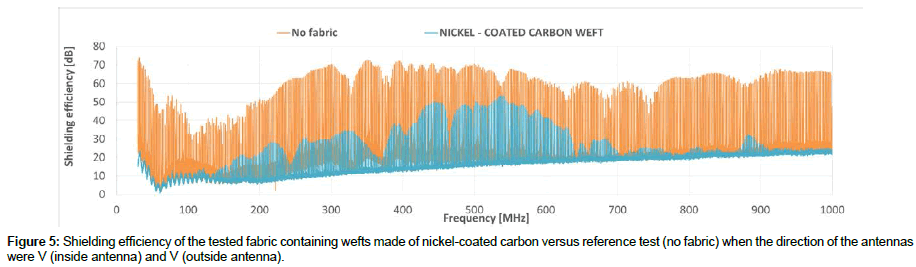

Figure 5: Shielding efficiency of the tested fabric containing wefts made of nickel-coated carbon versus reference test (no fabric) when the direction of the antennas were V (inside antenna) and V (outside antenna).

Test set-up Fabric (1): Carbon Fabric (2): Carbon + Nickel No fabric
Shielding efficiency [dB] Frequency [MHz] Shielding efficiency [dB] Frequency [MHz] Shielding efficiency [dB] Frequency [MHz]
antenna inside V antenna outside V 80.62 30.00 53.36 538.04 73.76 32.00
antenna inside V antenna outside H - - 57.77 628.08 - -
antenna inside H antenna outside H 53.59 456.04 77.94 30.00 80.71 30.00
antenna inside H antenna outside V - - 50.39 224.04 - -

Table 2: The highest achieved values of shielding efficiency [dB] for tested fabrics**

Conclusions

On the base of the assumption that the conductive yarn introduced into a fabric may greatly support shielding efficiency of EMR one selected two of them to play the role of wefts. The yarn with nickel coating presents higher shielding efficiency in high frequency range of the spectrum. At this stage of the test only one of the set-up of the antennas could be compared. It was expected that increase in the number of layers of the fabrics placed on top of one another at and/ or changing a phase shift angle of one of the layers to compare to the second one can present even higher shielding efficiency.
