Eco Friendly Synthesis of Zinc-Metal Organic Framework Luminescent Nano Particles (Zn-Mofnp), Characterization and their Extended Applications to Antimicrobial Studies
Received date: 10 April, 2023, Manuscript No. JNMN-23-95021;
Editor assigned date: 12 April, 2023, Pre QC No. JNMN-23-95021 (PQ);
Reviewed date: 26 April, 2023, QC No. JNMN-23-95021;
Revised date: 03 May, 2023, Manuscript No. JNMN-23-95021 (R);
Published date: 10 May, 2023, DOI: 10.4172/2324-83414.1000352
Citation: Jayanthi SS, Arunkumar P, Vijayalakshmi R, Shanmuga PN, Thejaswini V, et al. (2023) Eco Friendly Synthesis of Zinc-Metal Organic Framework Luminescent Nano Particles (Zn-Mofnp), Characterization and their Extended Applications to Antimicrobial Studies. J Nanomater Mol Nanotechnol 12:2.
Zinc metal oxygen framework nano particle (Zn-MOFNP) can be synthesized using a simple solvent free environmentally benign combustion method. The structural characterization of synthesized nano particles are carried out using XRD, FT-IR and SEM. The XRD results show that Zn-MOFNP is in single phase. The SEM results show that Zn-MOFNP is highly porous with nano sheet appearance. The optical characterization was carried out using UV and Photoluminescence spectrofluorimeter. The life time experiments were carried out using single photon counting instrument and it was about 3.8 ns. The FT-IR studies clearly indicate the formation of the compound. The compound shows antibacterial and antimicrobial properties in par with the standard. Further substitution can enhance the antimicrobial properties
Keywords: Zinc-MOF; Fluorescence; Lifetime measurement; Antimicrobial; Antibacterial
Metal-Organic Frameworks (MOFs) are emerging new class of functional crystalline solid-state materials. MOFs with its vast structural modularity, exceptional controlled porosity, make it as the most promising candidate to address many of the overbearing societal challenges pertaining to energy and environmental sustainability . Initially, MOFs were solely based on the coordination of monodentate N-donor polytopic pyridine-based ligands with single metal ions . The great variety of linear dicarboxylic ligands were used for making MOF and the great information gathered from obtained structures, is what made this platform highly sought after by researchers to identify the impact of functional and structural modifications on material properties .
This high degree of customizability of MOFs properties has attracted the interest of many researchers. To date, there are more than 20,000 different structures of MOFs being reported and studied . Depending on the final structures and properties, MOFs may be prepared using several distinct synthetic methods such as: slow diffusion, hydrothermal (solvothermal), electrochemical, mechanochemical, microwave assisted heating and ultrasound [5-10]. These synthetic methods and formation mechanism of MOF have been comprehensively reviewed by Seoane and coworkers recently .
In the last two decades, research interest in Metal–Organic Frameworks (MOFs) has grown dramatically, driven by the MOFs most attractive applications in gas storage and separation, Photosensors, chemical sensor, and heterogeneous catalyst and also in antimicrobial fields [12-16]. Due to the higher application of MOF in various fields, we would like to introduce simple, ecofriendly, solvent free method for the synthesis of Zn-MOF material.
Materials and Methods
The following analytical grade materials were used without further purification: Zinc acetate hexa hydrate Zn (CH3COO) 2.6H2O. A.C.S. reagent (Sigma-Aldrich, 99% purity by wt) and the glycerol (anhydrous) were obtained from Merck (99%). Benzene-1,4-Di- Carboxylic acid (AR) grade (BDC) was obtained from sigma Aldrich. Ortho phosphoric acid obtained from sigma Aldrich was also used as dispersant. Time-resolved fluorescence decays were obtained by the Time Correlated Single-Photon Counting (TCSPC) method and the experimental setup is carried as reported . Antimicrobial studies are carried out using well diffusion method.
Synthesis of zinc MOF
About 0.2 g of the zinc aceate hexa hydrate was weighed and made in to a paste with 2 drops of glycerol in a 50 ml silica crucible. The amount of glycerol used was optimized after several trials. The excess glycerol leads to charring of substances. The initial temperature was set to 50°C and the temperature was slowly raised to 300°C in the muffle furnace. The substance is calcinated at 300°C for 4 hrs. The brown crystalline Zinc–MOF powder obtained was characterized. Zinc-oxide and cerium oxide nanoparticles were already synthesized by authors and reported inthe earlier literature (Figures 1 and 2) .

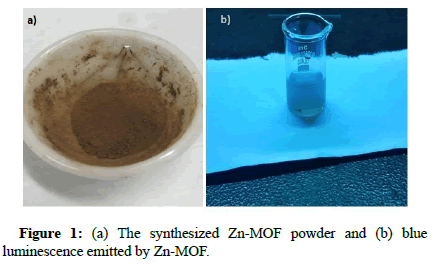

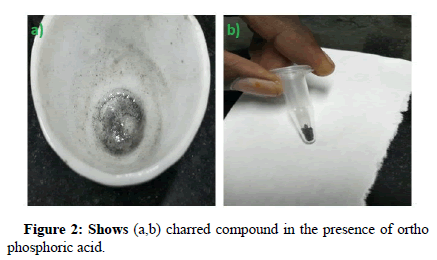

The similar experiment was carried out using same amount of zinc acetate and Benzene-1,4-Di-Carboxylic acid (BDC) with few drops of ortho phosphoric acid as initiator. Since phosphoric acid is a good initiator, we expected to get a good product . The product gets charred and huge amount of fumes are released.
The surface morphology of the synthesized Zinc–MOF was characterized using SEM analysis. The scanning electron microscope used for this purpose is a Jeol-JSM-3.5 CF-Japan. The powder X-ray diffraction was performed using Scifert X-ray diffractometer with a CuKα radiation. The diffracted intensities were recorded from 10 to 70° angle. The absorption and emission spectra were recorded using Perkin Elmer LS 25 spectrophotometer and Perkin Elmer LS 45 spectro fluorimeter respectively. For the spectroscopic analysis, Zinc MOF sample was dispersed in HPLC methanol with the help of the sonicator for 10 minutes. The spectrum was recorded under room temperature. The life time of Zn-MOF was determined using time-correlated single-photon-counting spectrometer. Antibacterial and antifungal studies are carried out using well diffusion agar–agar method.
Results and Discussion

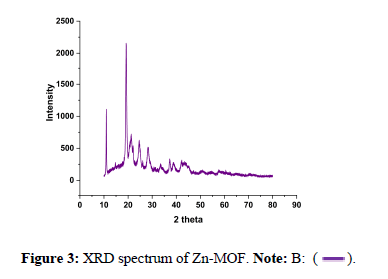

The structural characterization was carried out using powder XRD. By application of XRD technique, substantial information is acquired about crystal structure, phase type and product purity. Figure 3 shows typical XRD pattern of the as-obtained Zn-MOF particles. As you can see, all peaks are distinct. Sharp peaks in this spectrum corroborate the crystalline structure of Zn-MOF nanoparticles.
The analysis of powder XRD pattern at room temperature was compared with the literature report . The spectrum observed is similar to the literature and the substance formed is single phase with the hexagonal symmetry . The absence of extra peak claims the purity of the substance and also the complete conversion of Zinc acetate.

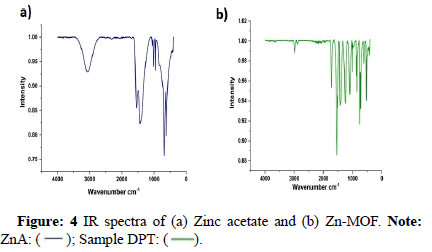

FT-IR is used to identify the organic compounds and functional groups in different materials. Figure 4 shows FT-IR spectrum of Zn- MOF nanoparticles after calcination at 300 C for 3 h in KBr matrix. As depicted, there is no peak due to impurities and preliminary reagents and it demonstrates the completion of the reaction. Also, various peaks were presented such as 400–1000 cm1 for Zn–O bonds, 3000 cm-1 for OH of carboxylic acid, 1700 cm-1 for C stretching bond and around 1400 cm-1 for confirming the aromaticity of structure. The FT-IR spectrum also matches with the literature report .
The reduction in peak around 3000 cm-1 indicates the formation of link between zinc and benzene di-carboxylic acid. The absence of extra peak claims the purity of the substance and also the complete conversion of zinc acetate.

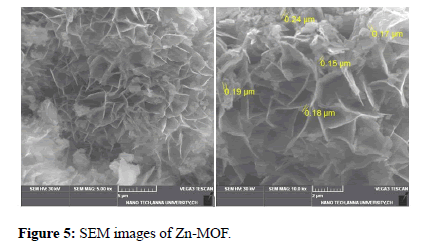

The surface morphology of the resulting powder was examined using scanning electron microscope. The SEM micrographs of the Zn- MOF powder shown in Figure 5 represent the formation in single phase and the constituents are Nano sheets which shows curled petal in a flower like appearance.
The Nano structures are of 15 nm to 25 nm in size. The advantages in the above reaction are no solvent, no solid by-products, economic and ecofriendly. The role of the glycerol is to act as an organic dispersant to overcome the agglomeration.

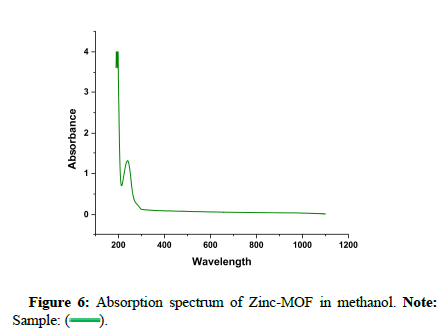

The brown crystalline Zn MOF powder was not soluble in water and almost in all organic solvents. Hence UV–Visible spectra were recorded for the Zinc-MOF dispersed in methanol solution and is represented in Figure 6. The absorption band observed at 271 nm is the characteristic peak of Zn-MOF nanomaterial.

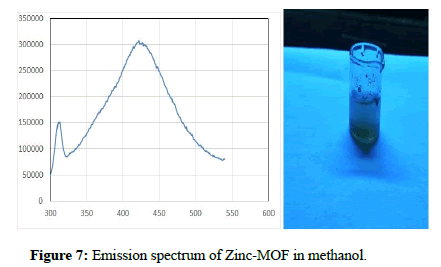

The compound was excited at 251 nm and the compound shows emission at 420 nm. The Zn-MOF compound shows blue emission. The emission spectrum was recorded at the excitation wavelength of 251 nm using Perkin Elmer spectro fluorimeter and is represented in Figure 7. The strong violet emission around 420 nm is the result of recombination of electron between Zinc interstitial and hole in the valence band. It is known that the transition metal ions without any free electron are known to possess linker based high emissive charge. Thus the Zn-MOF is expected to have luminescent property apparently due to linker-based emission. Zn-MOF shows emission maxima at 430 nm when excited at 372 nm.

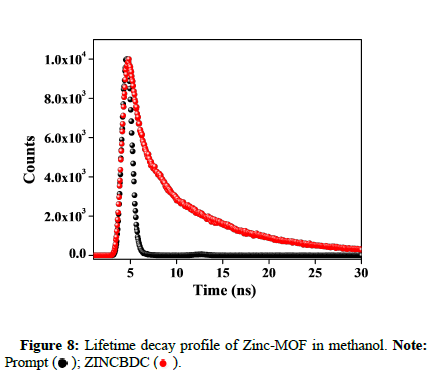

The fluorescence decay of ZINCBDC was recorded in water after sonication using the time correlated single photon counting spectrometer with a PMT (R3237 PMT) as a detector. The time resolved fluorescence decay of ZINCBDC in the water was monitored at 410 nm by exciting at 295 nm. The fluorescence decay of ZINCBDC in water was given in Figure 8. The observed decay lifetime was compiled in Table 1.
Table 1: The fluorescence lifetime data of ZINCBDC in water.
Antibacterial activity of sample was determined by well diffusion method on Muller Hinton Agar (MHA) medium. The Muller Hinton agar medium was weighed as 3.8 gms and dissolved in 100 ml of distilled water and added 1 gm of agar. Then the medium is kept for sterilization. After sterilization the media was poured into sterile petriplates and were allowed to solidify for 1hr. After the medium was solidified, the inoculums were spread on the solid plates with sterile swab moistened with the bacterial suspension. Wells were made using cork borer. Sample (Zn-MOF) was loaded in four different concentrations (25,50,75 and 100) and Streptomycin (1 mg/ml-20 μl) loaded in respective wells. These plates were incubated for 24 hrs at 37°C. Then the microbial growth was determined by measuring the diameter of zone of inhibition (Table 2 and 3) (Figure 9).
|Sample/Microorganisms||Zone of Inhibition in mm|
|Concentrations (µ)||S (20 µl)|
Table 2: 1-25 µl, 2-50 µl, 3-75 µl, 4-100 and 5-Streptomycin (Control).
|Sample/Microorganisms||Zone of Inhibition in mm|
|Concentrations (µl)||K (20µl)|
Table 3: 1-25 µl, 2-50 µl, 3-75 µl, 4-100 and 5-ketocanzole (Control). The Zinc-MOF shows both antibacterial and antifungal activity. The compound shows activity on both Gram positive and Gram negative bacteria.
Antifungal activity/Agar well diffusion method/Preparation of inoculum
Stock cultures were maintained at 4°C on slant of potato dextrose agar. Active cultures for experiments were prepared by transferring a loop full of cells from the stock cultures to test tubes of nutrient broth for bacteria that were incubated at 24 hrs at 37ºC. The Assay was performed by agar disc diffusion method.
Antifungal activity of sample was determined by well diffusion method on Potato Dextrose Agar (PDA) medium. The potato dextrose agar medium was weighed as 4.4 gms and dissolved in 100 ml of distilled water and add 1 gm of agar. Then the medium is kept for sterilization. After sterilization the media was poured in to sterile petriplates and were allowed to solidify for 1 hr. After the medium was solidified, the inoculums were spread on the solid plates with sterile swab moistened with the fungal suspension. Wells were made using cork borer. Sample (Zn-MOF) was loaded in four different concentrations (25,50,75 and 100) and Positive control (ketocanzole 1 mg/ml-20 μl) was loaded in respective wells. These plates were incubated for 24 hrs at 37ºC. Then the microbial growth was determined by measuring the diameter of zone of inhibition (Table 3).
The present study illustrates a simple, solvent free and ecofriendly method for the synthesis of Zinc–MOF Nano particles through the direct combustion of Zinc acetate in the presence of minimum amount of glycerol as organic dispersant. The XRD analysis reveals that the Zn-MOF formed is of single phase. The SEM analysis tells us about the morphology of the particle which shows Nano petals likes structure. The porous structure depicts that Zn-MOF is a suitable candidate for catalysis. The characteristic peaks in the absorption and emission spectrum and the lifetime analysis of the compound confirms that the compound is a promising candidate for sensor. Zn-MOF also shows antibacterial and antifungal properties. Hence this is a benign method for the synthesis of Zn-MOF.
