Case Report, J Genet Disor Genet Rep Vol: 6 Issue: 3
A Rett Syndrome Case with Mutation in MECP2 and Deletion of 16p11.2
*Corresponding Author : Bossolani-Martins AL
Avenida Pedro Pedrossian, 725, Câmpus de Paranaíba, University of Mato Grosso do Sul, Paranaíba-MS- 79.500- 000, Brazil
E-mail: [email protected]
Received: August 17, 2017 Accepted: September 07, 2017 Published: September 14, 2017
Citation: Bossolani-Martins AL, Moreira DP, Lourenço NCV, Magalhães ML, Ribeiro CM, et al. (2017) A Rett Syndrome Case with Mutation in MECP2 and Deletion of 16p11.2. J Genet Disor Genet Rep 6:3. doi: 10.4172/2327-5790.1000158
Rett syndrome (RTT) is a rare, severe and progressive neurological disorder, which mainly affects girls. It is due mutations in MECP2, the most prevalent cause of classical RTT. Its common clinical manifestation is the autistic behavior that can be observed in several genetic disorders and in cases with isolated rare copy number variations (CNVs). Deletions of 16p11.2 represent one of the most recurrent, being present in about 1% of ASD cases. This report describes a girl with Rett syndrome and autism who presented both MECP2 mutation and microdeletion of 16p11.2, with developmental delay since birth, besides dysmorphic aspects. To our knowledge, this is the first identification and characterization of a patient with these two genetic alterations. We suggest that this association might contribute to a more severe phenotype.
Keywords: Rett syndrome; MECP2 mutation; Microdeletion of 16p11.2
Rett syndrome (RTT) is a severe and progressive genetic disorder that affects 1/10,000 to 1/15,000 females . It is characterized by an initial period of apparently normal development until six to 12 months, followed by rapid decline with loss of hand use and spoken language and the onset of stereotypic hand movements, abnormal gait and growth failure . Autistic-like behaviour is observed in 30- 50% of the cases . RTT, previously considered a category of autism spectrum disorder (ASD), is now considered a distinct disease .
It is mainly caused by de novo mutations in Methyl-CpG-binding Protein 2 gene (MECP2), in a X-linked dominant inheritance pattern . Loss of function of one copy of the gene leads to RTT and duplication of the gene has been found in boys with developmental delay, intellectual disability and autism .
ASD is a complex and heterogeneous disorder. Copy number alterations (CNVs) were shown to be an important causative mechanisms, being present in about 5-10% of cases, specially 15q11-q13.3, 16p11.2 and 22q13 [7-9]. Proportion of patients with 16p11 microdeletion and autism is high and ~1% of autistic people have this alteration. Also, the affected can present obesity, birth defects and other neurobehavioral abnormalities .
Here we present an autistic girl with both MECP2 mutation and del(16)(p11.2) with an unusual developmental and morphological phenotype in RTT, suggesting that it was the result of the association between the two events.
Materials and Methods
This study was approved by the Ethical Committee of the Institute of Biosciences, University of São Paulo (IB-USP) protocol n°121/2011. Written consent for the study was given by the proband’s parents.
The patient came from an outpatient clinic for screening autistic disorder. Initially she was subjected to the laboratory protocol for etiological investigation of ASD, including karyotype and CNVs and according to her neurological phenotype, the MECP2 gene was also investigated.
SALSA MLPA P343 Autism-1 probemix commercial kit MRCHolland (Amsterdam, Netherlands), with probes for 15q11-q13, 16p11.2 and 22q13, was used for multiplex ligation-dependent probe amplification (MLPA) test, according to manufacturer protocol. The amplification products were identified and quantified by capillary electrophoresis on an ABI 3730 DNA analyzer (Applied Biosystems, Forster City, CA, US). The data were analyzed using GeneMarker software version 1.97 (SoftGenetics, State College, PA, US). Threshold values for the peak height ratio were set at 0.75 and 1.3 for deletions and duplications respectively which were considered as reference ratio.
Genomic DNA was extracted from peripheral white blood cells by standard procedures. The third and fourth coding exons of MECP2 were sequenced on an ABI-3730 DNA Analyzer (Applied Biosystems, Forster City, CA, US) and analyzed by the sequencing facility of the Human Genome Research Center (http://genoma.ib.usp.br/?page_id=922). Primers and detailed PCR conditions are available under request. The sequences were aligned with normal MECP2 reference sequence GRCh37/hg19(NM_004992.3) using Sequencher software version 5.1(Gene Codes Corporation).
The dysmorphyc female patient was first evaluated in an outpatient screening clinic for individuals with autism at the age of 7 years old. She was born at 35 weeks gestation by normal vaginal delivery, with 2.0 kg, from a dizygotic twin pregnancy. The parents are non-consanguineous; mother was 24 years old and father was 25 years old at time of the infant´s birth. The twin sister did not present any morphological or developmental alterations. Developmental history of the patient revealed hypotonia and severe delay from the birth, difficulties in breast feeding and deceleration of head growth.
She started to walk at the age of two years, falling very often. According the mother, autistic behavior was noticed when she was about six months old and the neuropsychomotor development was never considered as normal. At time of our investigation, she presented profound mental retardation, intellectual disability, eating difficults, constipation, gait, truncal ataxia, gait apraxia, muscle wasting, spasticity, intermittent hyperventilation, bruxism, absence of use of the hands, cachexia, microcephaly, abnormal sleeping pattern and hand stereotypies. We also observed broad forehead, ocular hypertelorism, flat midface, macrostomy and pointed chin. Her head circumference was 47 cm (<2nd percentile), weight was 14.7 kg (<3rd percentile) and stature was 105 cm (<3rd percentile). The echocardiogram, TSH/T4/PKU dosage, brain stem-evoked response audiometry (BERA) and GTG-band karyotype were normal. Could not perform the head magnetic resonance imaging (MRI).
At this time, autistic behaviour was diagnosed by psychiatrists based on DSM-IV criteria and specific tests. She showed impaired social interactions and language development, stereotyped and repetitive behaviour, absent eye contact and inflexible adherence to routines or rituals.
Molecular analysis revealed one heterozygous microdeletion at 16p11.2 spanning about 716Kb and encompassing DOC2,HRIP3, MAPK3, MAZ, MVP, SEZ6L2 and SPN (Figure 1) and the mutation c.763C>T (p.Arg255X) at MECP2.

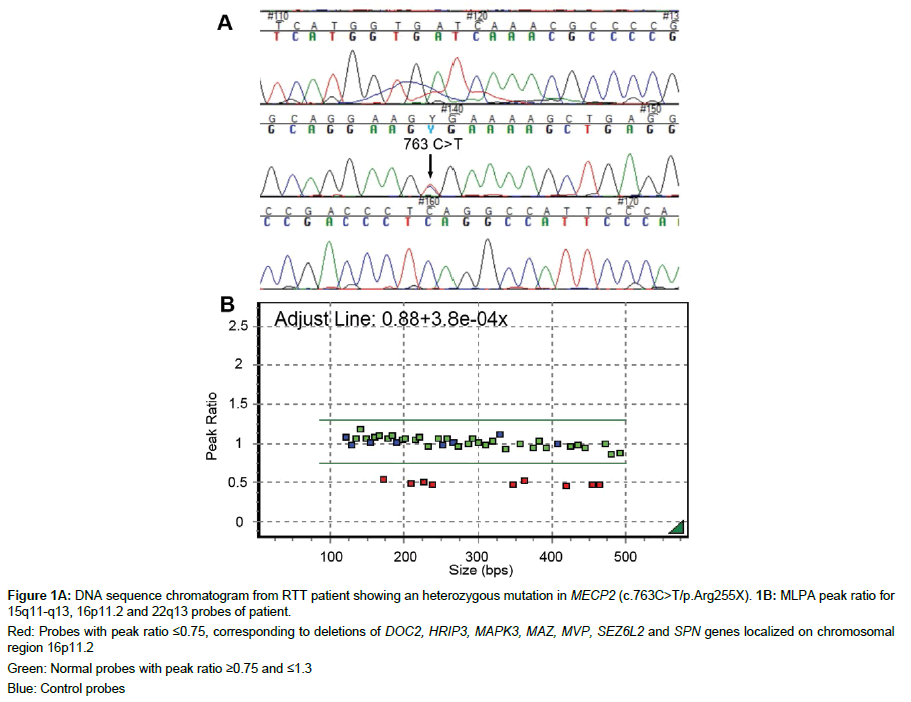

Figure 1A: DNA sequence chromatogram from RTT patient showing an heterozygous mutation in MECP2 (c.763C>T/p.Arg255X). 1B: MLPA peak ratio for 15q11-q13, 16p11.2 and 22q13 probes of patient.
Red: Probes with peak ratio ≤0.75, corresponding to deletions of DOC2, HRIP3, MAPK3, MAZ, MVP, SEZ6L2 and SPN genes localized on chromosomal region 16p11.2
Green: Normal probes with peak ratio ≥0.75 and ≤1.3
Blue: Control probes
The father, mother and twin sister were also tested and the results were normal. Thus, both the 16p11.2 CNV and the c.763C>T at MECP2 were interpreted as de novo alterations.
Here we describe the occurrence of two de novo pathogenic mutations, a nonsense mutation in MECP2 and a microdeletion at 16p11.2 in a girl with delayed neuropsychomotor development and minor birth defects. MECP2 regulates the expression of several important genes for brain development and plasticity, including genes already linked to autism . The mutation c.763C>T (p.Arg255X) in MECP2 is located in one of the hotspots of the gene known to be associated with a typical RTT phenotype . Corresponds to the third mutation more common in RTT (6.68%) . However, our patient has dysmorphic clinical signs which is not observed in RTT, and had not presented normal initial development followed by withdrawal and regression, as is common in this disease.
The 16p11.2 microdeletion had been consistently implicated in alterations in cognitive functioning and behaviour . It is also associated with a unique widespread pattern of brain aberrant white matter microstructure that may underlie the impaired cognition and neuropsychiatric disorders . According some authors, the full ASD penetrance in patients with 16p11.2 monosomy is not always observed and it can depend on other hit. The most common clinical manifestations are language delay and mental retardation [16-18]. Although the subjects with 16p11.2 microdeletion do not clearly constitute clinically a recognisable syndrome, certain facial features are shared among them: broad forehead, micrognathia, hypertelorism and a flat midface . The micrognathia is described as one of more common findings, but our patient does not present it. In the series of patients studied by Shinawi et al. , for example, macrostomia can be noted in several of them, which did not catch the attention of the authors. Interestingly our patient has macrostomia. Seizures and obesity are also frequently described  which she also did not present.
Microduplications in 16p11.2 may influence or alter the expression of genes in pathways associated with ASD. This includes the MECP2, suggesting an overlapping mechanisms in the etiopathogenesis . Further, Longo et al.  reported three out of 63 RTT individuals with MECP2 mutations also were carriers of 15q11-13 rearrangements. Considering the high frequency of these CNVs (5%) in this group of RTT individuals, they suggested that the 15q rearrangements might represent one genetic determinant of the clinical variability of Rett syndrome. Therefore, it is possible that CNVs at 16p11.2 also contribute to modulate the phenotype of RTT patients, possibly contributing to severity of the case.
Genetic counselling involving two independent alterations can be challenging, particularly for the CNVs at 15q11-q13 or 16p11.2, which are associated with a still unknown penetrance and might occur as de novo or inherited from one of the healthy parents [17,23]. In our case, as both mutations were de novo, we considered the recurrence risk for RTT or ASD as negligible even if 16p11.2 CNV had been inherited from a non-penetrant parent, a risk for ASD should be considered low.
In summary, we described two rare mutational events in the same patient, which would be particularly relevant for genetic counselling purposes. Although functional performance in RTT patients can be related in general to the type of genetic defect, and that the mutation in the MECP2 gene plays a greater role in the severity of clinical symptoms, it cannot be ruled out that the deletion in 16p.11.2 also has an additive effect to the autistic phenotype in Rett syndrome. In addition, this is the case when we report these two mutations in the same individual, so we hypothesize that the deletion of 16p11.2 may be underdiagnosed in this population with Rett syndrome and deserves to be investigated in larger cases.
The authors are thankful to Dr. Maria Rita Passos-Bueno for referral of the patient and for productive collaboration, the family for their participation and the Foundation of Support for Research in the State of São Paulo - FAPESP (Grants 2010 / 14943-6 and 2013 / 08028-1-CEPID) for financial support.
Conflict of Interest
The authors declare no conflict of interest.
- Laurvick CL, De Klerk N, Bower C, Christodoulou J, Ravine D, et al. (2006) Rett syndrome in Australia: a review of the epidemiology. J Pediatr 148: 347-352.
- Zahorakova D (2013) Rett Syndrome, in: Radzioch D (ed.) Chromatin Remodelling, InTech.
- Wulffaert J, Van Berckelaer-Onnes IA, Scholte EM (2009) Autistic disorder symptoms in Rett syndrome. Autism 13: 567-581.
- American Psichiatric Association (2013) Diagnostic and Statistical Manual of Mental Disorders. American Psychiatric Association.
- Chahrour M, Zoghbi HY (2007) The story of Rett syndrome: from clinic to neurobiology. Neuron 56: 422-437.
- Van Esch H (2011) MECP2 Duplication Syndrome. Mol Syndromol 2: 128-136.
- Abrahams BS, Geschwind DH (2008) Advances in autism genetics: on the threshold of a new neurobiology. Nat Rev Genet 9: 341-355.
- Lintas C, Persico AM (2009) Autistic phenotypes and genetic testing: state-of-the-art for the clinical geneticist. J Med Genet 46: 1-8.
- Grayton HM, Fernandes C, Rujescu D, Collier DA (2012) Copy number variations in neurodevelopmental disorders. Prog Neurobiol 99: 81-91.
- Schaaf CP (2011) Expanding the clinical spectrum of the 16p11.2 chromosomal rearrangements: three patients with syringomyelia. Eur J Hum Genet 19: 152-156.
- Zhubi A, Chen Y, Dong E, Cook EH, Guidotti A, et al. (2014) Increased binding of MeCP2 to the GAD1 and RELN promoters may be mediated by an enrichment of 5-hmC inautism spectrum disorder (ASD) cerebellum. Transl Psychiatry 4: e349.
- Bebbington A, Anderson A, Ravine D, Fyfe S, Pineda M, et al. (2008) Investigating genotype-phenotype relationships in Rett syndrome using an international data set. Neurology 70: 868-875.
- RettBASE (2017) RettSyndrome.org Variation Database. RettBASE. Accessed on: 21 April 2017.
- Torres F, Barbosa M, Maciel P (2016) Recurrent copy number variations as risk factors for neurodevelopmental disorders: critical overview and analysis of clinical implications. J Med Genet 53: 73-90.
- Zufferey F, Sherr EH, Beckmann ND, Hanson E, Maillard AM, et al. (2012) 16p11.2 European Consortium. A 600 kb deletion syndrome at 16p11.2 leads to energy imbalance and neuropsychiatric disorders. J Med Genet 49: 660-668.
- Weiss LA, Shen Y, Korn JM, Arking DE, Miller DT, et al. (2008) Association between microdeletion and microduplication at 16p11.2 and autism. N Engl J Med 7: 667-675.
- CiuladaitÄÂ Z, KasnauskienÄÂ J, CimbalistienÄÂ L, PreikšaitienÄÂ E, Patsalis PC et al. (2011) Mental retardation and autism associated with recurrent 16p11.2 microdeletion: incomplete penetrance and variable expressivity. J Appl Genet 52: 443-449.
- Moreira DP, Griesi-Oliveira K, Bossolani-Martins AL, Lourenço NC, Takahashi VN et al. (2014) Investigation of 15q11-q13, 16p11.2 and 22q13 CNVs in autism spectrum disorder Brazilian individuals with and without epilepsy. PLoS One 9:e107705.
- Shinawi M, Liu P, Kang SH, Shen J, Belmont JW, et al. (2010) Recurrent reciprocal 16p11.2 rearrangements associated with global developmental delay, behavioural problems, dysmorphism, epilepsy, and abnormal head size. J Med Genet 47: 332-341.
- Miller DT, Chung W, Nasir R, Shen Y, Steinman KJ, et al. (2015) 16p11.2 Recurrent Microdeletion. Gene Reviews® [Internet].University of Washington, Seattle.
- Blumenthal I, Ragavendran A, Erdin S, Klei L, Sugathan A, et al. (2014) Transcriptional consequences of 16p11.2 deletion and duplication in mouse cortex and multiplex autism families. Am J Hum Genet 6; 870-883.
- Longo I, Russo L, Meloni I, Ricci I, Ariani F, et al. (2004) Three Rett patients with both MECP2 mutation and 15q11-13 rearrangements. Eur J Hum Genet 12: 682-685.
- Urraca N, Cleary J, Brewer V, Pivnick EK, McVicar K, et al. (2013) The interstitial duplication 15q11.2-q13 syndrome includes autism, mild facial anomalies and a characteristic EEG signature. Autism Res 6: 268-279.
